STI SS2009PO-EN Stopper Station Button, No Cover, Turn-to-Reset Illuminated, EMERGENCY POWER OFF Label, Red
SS2009PO-EN
|SF-2009POEN
Shop all Safety Technology International
STI SS2009PO-EN Stopper Station Button, No Cover, Turn-to-Reset Illuminated, EMERGENCY POWER OFF Label, Red
SS2009PO-EN | SF-2009POEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

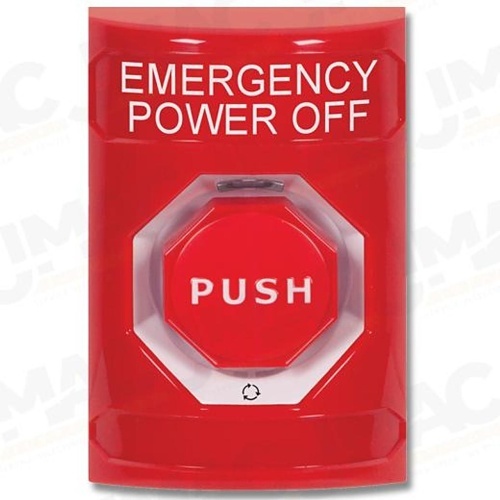

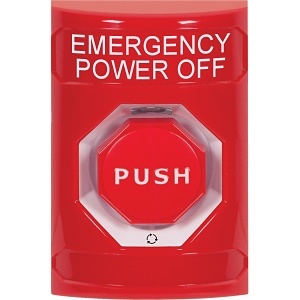

This Stopper® Station, turn-to-reset push button switch is housed in a curved shell with EMERGENCY POWER OFF messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). For indoor use, two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC are included. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Turn-to-Reset push button activation
- Raised EMERGENCY POWER OFF label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2009PO-EN Stopper Station Button, No Cover, Turn-to-Reset Illuminated, EMERGENCY POWER OFF Label, Red
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950508847
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2009POEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2009PO-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Print/Message EMERGENCY POWER OFF
ADA Compliant Yes
