STI SS2038PX-EN Stopper Station Push Button with Universal Stopper Cover, Flush Mount, Pneumatic Illuminated, 'PUSH TO EXIT' Label, Red
SS2038PX-EN
|SF-2038PXEN
Shop All Safety Technology International
STI SS2038PX-EN Stopper Station Push Button with Universal Stopper Cover, Flush Mount, Pneumatic Illuminated, 'PUSH TO EXIT' Label, Red
SS2038PX-EN | SF-2038PXEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

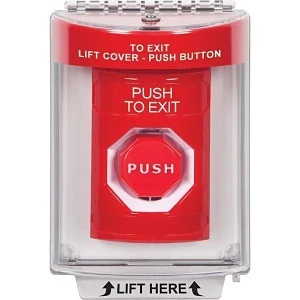

This Stopper® Station, pneumatic push button includes a flush mounted Universal Stopper protective cover. The push button is housed in a curved, red shell with PUSH TO EXIT messaging. Switch rating 10 amps resistive at 120-240 VAC and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ± 10%. Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C). Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate. Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white). Ideal for security applications. 1 Form Z, 1 N.O. and 1 N.C. contact. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Specifications
ADI Part Number SF-2038PXEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2038PX-EN Product Line Stopper Station Product Model SS2038PX-EN Product Name STI Stopper Station Product Series SS2 Product Type Push Button Switch
Gang Type Illuminated
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Color Red
Contact Type N.C., N.O. Print/Message Push To Exit
Limited Warranty 3-Year
ADA Compliant Yes Certifications & Standards CE, CSA, UL Environmental Certification CE, CSA, UL
