STI SS2039AB-EN Stopper Station Button with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated, ABORT Label, Red
SS2039AB-EN
|SF-2039ABEN
Shop all Safety Technology International
STI SS2039AB-EN Stopper Station Button with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated, ABORT Label, Red
SS2039AB-EN | SF-2039ABEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

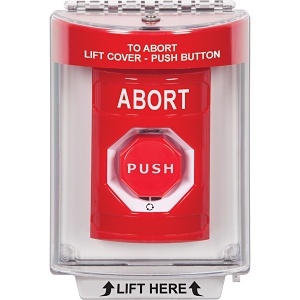

This Stopper® Station, turn-to-reset push button switch with Universal Stopper protective cover. The push button is housed in a curved shell with ABORT messaging. Above the button is a multicolor 12-24 VAC/VDC LED illumination status bar (LED color options: red, green, and white). For indoor use, two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC are included. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Turn-to-Reset push button
- Raised ABORT label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white)
- Protective cover helps protect button from damage and accidental activation
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2039AB-EN Stopper Station Button with Universal Stopper Cover, Flush Mount, Turn-to-Reset Illuminated, ABORT Label, Red
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950524991
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2039ABEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2039AB-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message ABORT
Limited Warranty 3-Year
ADA Compliant Yes
