STI SS2177ZA-EN Indoor / Outdoor Surface Weather Resistant Momentary Stopper Station with Custom Text Label, Green
SS2177ZA-EN
|SF-2177ZAEN
Shop All Safety Technology International
STI SS2177ZA-EN Indoor / Outdoor Surface Weather Resistant Momentary Stopper Station with Custom Text Label, Green
SS2177ZA-EN | SF-2177ZAEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

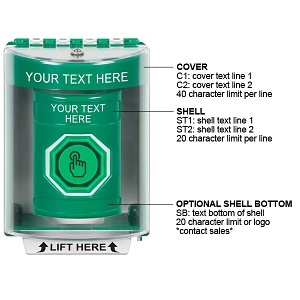

This Stopper® Station, weather resistant momentary switch includes a surface mounted Universal Stopper protective cover. The push button is housed in a curved shell with CUSTOM messaging. Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC. Operating range -31°F to 150°F (-35°C to 66°C). 12-24VAC/VDC LED. Weather resistant, suitable for indoor or outdoor use. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Weather resistant momentary button
- Raised CUSTOM label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Operating range -31°F to 150°F (-35°C to 66°C)
- 12-24VAC/VDC LED
- Weather resistant, suitable for indoor or outdoor use
General Information
Name: STI SS2177ZA-EN Indoor / Outdoor Surface Weather Resistant Momentary Stopper Station with Custom Text Label, Green
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950526209
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2177ZAEN Application/Usage Indoor/Outdoor Brand Name Safety Technology International Country of Origin US Manufacturer Safety Technology International, Inc Manufacturer Part Number SS2177ZA-EN Product Line Stopper Station Product Model SS2177ZA-EN Product Name Stopper Station SS2177ZA-EN Push Button Product Series SS2 Product Type Push Button
Minimum Timer Duration 2.0s
Maximum Operating Temperature 249.80°F Minimum Operating Temperature -40.0°F
Color Green Durability Weatherproof Material PC, Stainless Steel
Input Voltage 230 V AC
Print/Message Lift Here
ADA Compliant Yes Features Surface Mount
