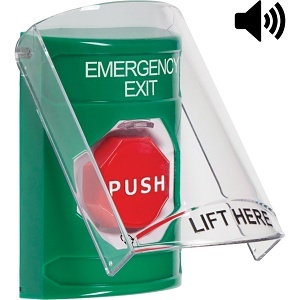

STI SS21A9EX-EN Indoor Only Flush or Surface w/ Horn Turn-to-Reset, Illuminated, Stopper Station with EMERGENCY EXIT, Green

Brand: Safety Technology International
ADI #:SF-21A9EXEN Model #: SS21A9EX-EN  Name: STI SS21A9EX-EN Indoor Only Flush or Surface w/ Horn Turn-to-Reset, Illuminated, Stopper Station with EMERGENCY EXIT, Green
  • Multipurpose push button switches cover a wide range of applications both indoors and outdoors.
  • Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components).
  • Unique, curved design helps protect against accidental activation.
STI Stopper Station SS21A9EX-EN Push Button

Product Overview

Helps Prevent Accidental Activation

Build these North American style, ADA Compliant, multipurpose push button switches to your specifications. Unique, patented design helps dramatically stop accidental activation. Available in six colors, several button activation choices, with or without a protective cover and in any language to accommodate most applications.

General Information

Name : STI SS21A9EX-EN Indoor Only Flush or Surface w/ Horn Turn-to-Reset, Illuminated, Stopper Station with EMERGENCY EXIT, Green , Safety Technology International
Category : Emergency Buttons
UPC Code : 662950500322
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : SF-21A9EXEN
Brand Name : STI
Manufacturer : Safety Technology International, Inc
Manufacturer Part Number : SS21A9EX-EN
Product Line : Stopper Station
Product Model : SS21A9EX-EN
Product Name : Stopper Station SS21A9EX-EN Push Button
Product Type : Push Button

Technical Information

Maximum Timer Duration : 1 Minute
Maximum Timer Duration (Second) : 60
Minimum Timer Duration : 2 Second
Minimum Timer Duration (Second) : 2

Environmental Conditions

Maximum Operating Temperature : 250°F (121.1°C)
Maximum Operating Temperature (°F) : 250
Minimum Operating Temperature : -40°F (-40°C)
Minimum Operating Temperature (°F) : -40

Physical Characteristics

Application/Usage : Indoor
Material : Polycarbonate, Stainless Steel
Product Color : Green

Power Description

Input Voltage : 120 V AC, 230 V AC, 30 V DC
Input Voltage (V AC) : 120, 230
Input Voltage (V DC) : 30

Product Information

Contact Type : N/C, N/O, SPST
Print/Message : Emergency Exit, Lift Here, Push

Warranty

Limited Warranty : 1 Year

Miscellaneous

Certifications & Standards : <ul> <li>ADA</li> <li>UL/cUL Listed S7255</li> <li>UL2017</li> <li>UL294 </li> <li>CSA c22.2 No. 205</li> </ul>
Features : Flush Mount, Surface Mount, Turn-to-Reset
