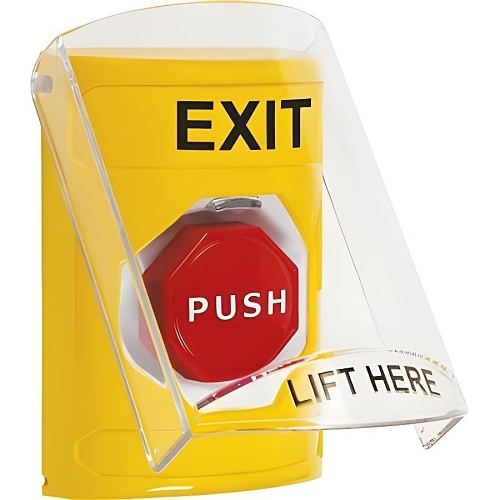

STI SS2225XT-EN Indoor Momentary Stopper Station, Illuminated, Flush / Surface Mount, English EXIT Label, Yellow
SS2225XT-EN
|SF-2225XTEN
Shop All Safety Technology International
STI SS2225XT-EN Indoor Momentary Stopper Station, Illuminated, Flush / Surface Mount, English EXIT Label, Yellow
SS2225XT-EN | SF-2225XTEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
These multipurpose push button switches cover a wide range of applications both indoors and outdoors. They’re called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.
Main Features
- Momentary button
- Raised EXIT label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED
- Includes shield cover
- UL/cUL Listed
- ADA Compliant
- Models used with LT-1UL Latching Timer Module are Listed for access control
General Information
Name: STI SS2225XT-EN Indoor Momentary Stopper Station, Illuminated, Flush / Surface Mount, English EXIT Label, Yellow
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950531760
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2225XTEN Application/Usage Indoor/Outdoor Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2225XT-EN Product Line Stopper Station Product Model SS2225XT-EN Product Name SS2225XT-EN STI Yellow Indoor Only Flush or Surface Momentary (Illuminated) Stopper Station with EXIT Label English Product Type Stopper Station
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Color Yellow Material PC
Input Voltage 12-24V AC, 24V DC
Contact Type DPDT (Double Pole Double Throw)
Compatibility LT-1UL Latching Timer Module are Listed for access control
