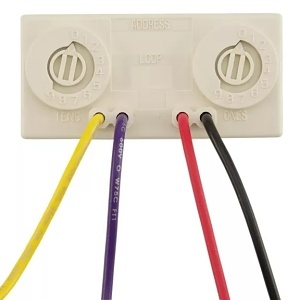

Silent Knight SK-MINIMON Addressable Mini Monitor Module for FACPs (Replaces IDP-Minimon)
Brand: Silent Knight by Honeywell
ADI #:SK-MINIMON
Model #: SK-MINIMON
Name: Silent Knight SK-MINIMON Addressable Mini Monitor Module for FACPs (Replaces IDP-Minimon)
- Single contact monitor
- Support for Class B (Style B) contact monitor wiring
- Small and lightweight size allows for flexible mounting options
Sale Type: Hot Deal
Product Overview
The SK-MINIMON is an addressable monitor modules for use with the Honeywell Silent Knight fire alarm control panels (FACPs). The SKMINIMON acts as an interface to contact devices, such as waterflow switches and pull stations. The SK-MINIMON supports Class B supervised wiring to the load device. Conventional 4-wire smoke detectors can be monitored for alarm and trouble conditions
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
INSTALLATION
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
INSTALLATION
The SK-MINIMON can be mounted in a single gang junction box directly behind the monitored device. Its small size and light weight allow it to be installed without rigid mounting requirements.
General Information
Name : Silent Knight SK-MINIMON Addressable Mini Monitor Module for FACPs (Replaces IDP-Minimon) , Silent Knight by HoneywellCategory : Control Panel Modules
UPC Code : 783863039614
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : SK-MINIMON
Brand Name : Silent Knight
Manufacturer : Honeywell International, Inc
Manufacturer Part Number : SK-MINIMON
Product Model : SK-MINIMON
Product Name : SK-MINIMON Intelligent Mini Monitor Module
Product Type : Alarm Control Panel Monitor Module
Weight (Approximate) (g) : 34.019
Technical Information
Device Supported : Control Panel
Environmental Conditions
Maximum Operating Temperature : 120°F (48.9°C)
Maximum Operating Temperature (°F) : 120
Minimum Operating Temperature : 32°F (0°C)
Minimum Operating Temperature (°F) : 32
Physical Characteristics
Depth : 0.5"
Depth (mm) : 12.7
Height : 1.3"
Height (mm) : 33.02
Weight (Approximate) : 1.20 oz
Width : 2.8"
Width (mm) : 69.85
Power Description
Input Voltage : 32 V DC
Input Voltage (V DC) : 32
Miscellaneous
Certifications & Standards : <ul> <li>UL Listed</li> <li>CSFM Listed</li> <li>FM Approved</li> </ul>
Country of Origin : United States
