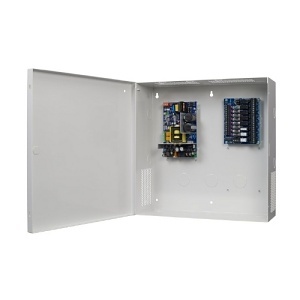

Securitron AQD4-4C1R1 Dual Voltage Power Supply with Enclosure, 4-Outputs, 1-Relay, 1 Amp PTC Polyswitch, 4 Amp, 12/24 VDC
AQD4-4C1R1
|SN-AQD44C1R1
Shop all Securitron by ASSA ABLOY
Securitron AQD4-4C1R1 Dual Voltage Power Supply with Enclosure, 4-Outputs, 1-Relay, 1 Amp PTC Polyswitch, 4 Amp, 12/24 VDC
AQD4-4C1R1 | SN-AQD44C1R1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Securitron AQD4 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with a dedicated battery charging circuit. They provide 4A at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Main Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Dual voltage 12 or 24 VDC field selectable continuous output
- Up to 89% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 9V at 12V or 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
General Information
Name: Securitron AQD4-4C1R1 Dual Voltage Power Supply with Enclosure, 4-Outputs, 1-Relay, 1 Amp PTC Polyswitch, 4 Amp, 12/24 VDC
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-AQD44C1R1 Brand Name Securitron by ASSA ABLOY Manufacturer Part Number AQD4-4C1R1
Depth 3.25" Width 14"
Amperage 2A
