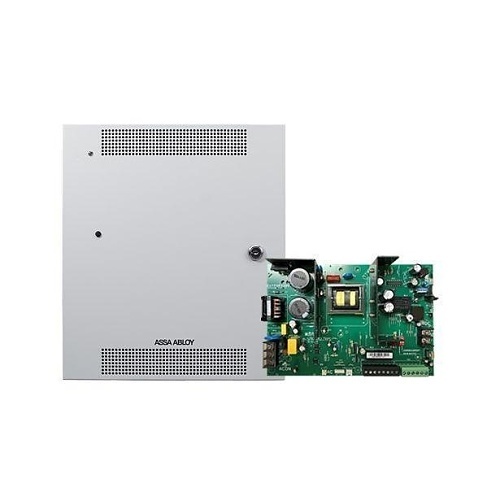

Securitron AQL102-D8E1 AQL Series Power Supply, 1-Input , 8-Output, 10A at 12VDC, 14 x 12 x 4.5"
AQL102D8E1
|SN-L12D1
Shop All Securitron by ASSA ABLOY
Securitron AQL102-D8E1 AQL Series Power Supply, 1-Input , 8-Output, 10A at 12VDC, 14 x 12 x 4.5"
AQL102D8E1 | SN-L12D1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The AQL102-D8E1 from Securitron is a power supply 10A 12V with enclosure, (1) D8. The Securitron AQL102 Series of switching power supplies are single voltage, UL listed plus multi-voltage and network monitoring ready. These units also include a dedicated fast battery charger. They provide 10 Amp at 12 VDC and are expandable up to 16 outputs.
Main Features
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Enhanced surge immunity for input/output protection
- LockSafe™ keeps locks cooler by providing a separate, dedicated battery charging circuit
- OutSmart™ technology provides dual-color LED visual notification which prevents applying incorrect voltages to the power supply: (Green: 12 V | Blue: 24 V)
- Auxiliary output is Class 2, power limited
- Mix and match UL Listing
- Instant auto-switch to battery on AC loss
- Expandable up to 16 outputs in the standard enclosure
- Multi-voltage with Securitron B100 Module
General Information
Name: Securitron AQL102-D8E1 AQL Series Power Supply, 1-Input , 8-Output, 10A at 12VDC, 14 x 12 x 4.5"
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-L12D1 Brand Name Securitron by ASSA ABLOY Country of Origin US Manufacturer ASSA ABLOY Manufacturer Part Number AQL102D8E1 Product Model AQL102D8E1 Product Name Securitron AQL102-D8E1 Power Supply 10A 12V with Enclosure, (1) D8 Product Series AQL Product Type Power Supply
Amperage 10.00A Output Voltage 12V DC
Color Blue, Green Depth 4.50" Form Factor Enclosure Height 14.00" Width 12.00"
Input Voltage 120-230V AC Output Current 10.0000A
ADI Part Number Replaces SN-AQ168C1R2 Model Number Replaces AQS1216-8C1R2
Limited Warranty Lifetime
Environmental Certification RoHS, UL Environmentally Friendly Yes
