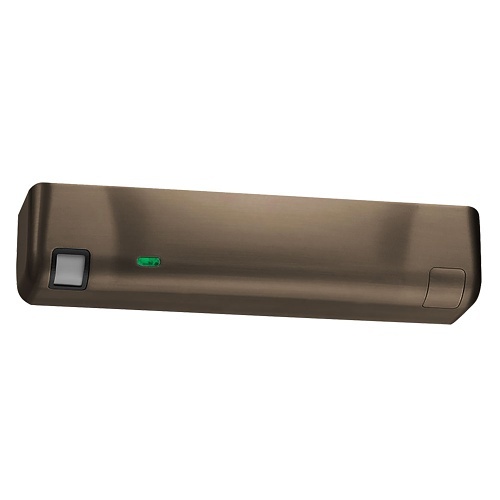

Securitron M380EBDX-613E Magnalock Series, Magnetic Lock, Bracket Mounted
M380EBDX-613E
|SN-M380EBDX1
Shop all Securitron by ASSA ABLOY
Securitron M380EBDX-613E Magnalock Series, Magnetic Lock, Bracket Mounted
M380EBDX-613E | SN-M380EBDX1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The M380EBDX-613E from Securitron is a Maglock with BondSTAT Monitor and Door Position Switch in Dark Oxidized Satin Bronze. The Securitron M380EBD model plus integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.
Main Features
- Sustainability documentation
- Energy efficient, low power usage
- Automatic dual-voltage – no field adjustment required
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Available integrated BondSTAT and Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Rust resistant – all ferrous metal surfaces plated for durability
- Adjustable automatic relock timer (0 to 30 seconds) BD and BDX Only
- Wire chamber anti-tamper switch
General Information
Name: Securitron M380EBDX-613E Magnalock Series, Magnetic Lock, Bracket Mounted
Category: Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 784607046035
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-M380EBDX1 Brand Name Securitron by ASSA ABLOY Manufacturer Part Number M380EBDX-613E Product Type Magnetic Lock
ADI Part Number Replaces SN-M380BDX31 Model Number Replaces M380BDX-313
Depth 0.625" Height 4.5" Width 2.75"
Contact Type DPDT, DPST Finishing Dark Oxidized Satin Bronze Holding Force 600 lb
Country of Origin US Features Anti-tamper Switch, Door Position Switch (DPS), Dual Voltage, Low Power Consumption, Relock Time Delay (RTD), Status LED, Tamper Sensor Indoor/Outdoor Indoor
