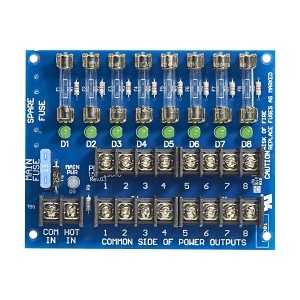

Securitron PDB-8C1R2 Power Distribution Board, PTC with Relays
PDB-8C1R2 | SN-PDB8C1R2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Discover the Securitron PDB-8C1R2 Power Distribution Board by ASSA ABLOY, designed with 8 power-limited outputs featuring auto-resetting capability for enhanced safety. This model includes circuit breakers and offers flexible control, allowing each output to be individually set to On, Off, or always On when triggered. It operates efficiently within a 12-28VDC range, with a nominal voltage of 12-24VDC. Each pair of outputs is equipped with removable terminal blocks and green status LEDs for easy monitoring. Upgrade your power management with this reliable and versatile distribution board. Order now to ensure optimal performance and protection.
Main Features
- 8 Power Limited Outputs with Auto-Resetting
- Circuit Breakers for model 8C1R
- Each Output is Individually Selectable to Turn On, Turn Off, or always ON when Triggered
- Outputs can be triggered with: Voltage or Reverse polarity (optically isolated) N/O or N/C switch with supervised EOL
- Form C Contacts (TRIGGERED) and Red LED (TRG) Indicate Trigger Status
- Form C Contacts (TROUBLE) and Green LED (TRB) Indicate: One of the output circuit breakers is tripped Main Fuse Blown or no power on input
- Operates with 12-28VDC; Nominal 12-24VDC
- Each Output pair has a Removable Terminal Block and Green Status LED
- Main Power has Green Status LED
- UL Listed Sub Assembly for Access Control and Burglar Alarm Systems
General Information
Name: Securitron PDB-8C1R2 Power Distribution Board, PTC with Relays
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Management, Power Distribution Modules
UPC Code: 784607046394
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-PDB8C1R2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number PDB-8C1R2 Product Name Relay Product Type Relay Sector Access Control
Application/Usage Fire Alarm Control Panel
Color Green Depth 0.8" Height 3.9" Width 4.8"
Maximum Input Current 2 A Output Current 10A Voltage Rating 24V
Amperage 10A
Country of Origin US
