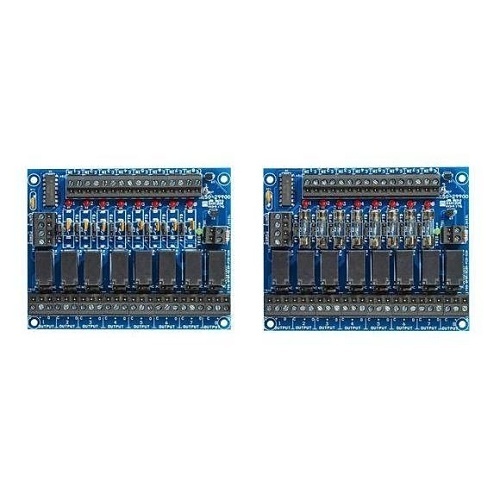

Securitron PDB-8C8R1 8-Output PTC Polyswitch with Relays, Fire Trigger, 1A

Compare

PDB-8C8R1 | SN-PDB8C8R1

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Securitron PDB-8C8R1 Power Distribution 8 PTC 1AOutput 1A w/Relays/FT.

8 Heavy duty Relays with individual Inputs and Status LED’s
Each Relay Input can be Activated from Low Current Open Collector, Normally Closed or Normally Open Switch
EOL End of Line Resistor Fire Interface Master Trigger de-energizes all Output Relays that are Enabled
Universal 12 – 28VDC power input (Nominal 12-24VDC)
8C8R is Class 2 Power Limited
Class 1 wiring required for 8F8R unless powered by a UL 294 or UL 603 or ULC S318 or ULC S533 listed power supply with class 2 output. There shall be a min of ¼ separation between power limited and non-power-limited circuits.
Available with Fuses or PTC Circuit Breakers
Each Output may be Individually Configured for: Fire Trigger (FT) Enabled or (FTD) Disabled N/O or N/C Option Configures the Relay Switched Output
Each Output 1-8 has a protected, continuous Output and a Relay controlled Output
Control Power and Main Lock Power may be Isolated (Separate Power Supplies) at Users Option

Name: Securitron PDB-8C8R1 8-Output PTC Polyswitch with Relays, Fire Trigger, 1A

Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Management, Power Distribution Modules

UPC Code: 784607046349

Country of Origin: United States. Country of origin is subject to change.

: ADI Part Number SN-PDB8C8R1 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number PDB-8C8R1 Product Model PDB-8C8R1 Product Name Securitron PDB-8C8R1 Power Distribution Board Product Type Power Supply
