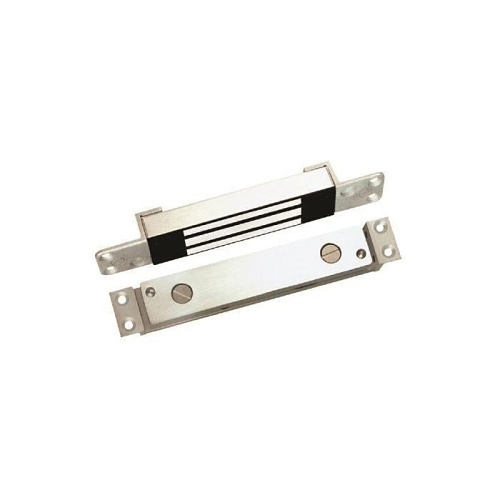

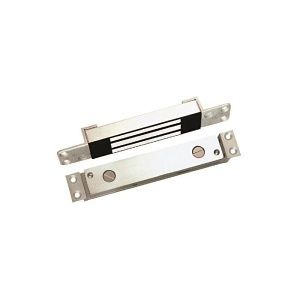

Image of SN-SAM2C24
Shop all Securitron by ASSA ABLOY

Securitron SAM2C-24 Magnalock Shearlock, 24VDC, 600lb Holding Force

SAM2C-24|SN-SAM2C24
Shop all Securitron by ASSA ABLOY

Securitron SAM2C-24 Magnalock Shearlock, 24VDC, 600lb Holding Force

SAM2C-24|SN-SAM2C24
Key Features
  • Smaller dimensions for difficult installation areas
  • Instant release circuit-no residual magnetism
  • Fully sealed electronics-tamper proof and weather proof
Key Features
  • Smaller dimensions for difficult installation areas
  • Instant release circuit-no residual magnetism
  • Fully sealed electronics-tamper proof and weather proof

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Smaller dimensions for difficult installation areas
  • Instant release circuit-no residual magnetism
  • Fully sealed electronics-tamper proof and weather proof
Securitron by ASSA ABLOY

Securitron SAM2C-24 Magnalock Shearlock, 24VDC, 600lb Holding Force

SAM2C-24 | SN-SAM2C24

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SAM2C-24 from Securitron is a 600 lbs. holding force Shear Aligning Magnalock mounts fully concealed and is ideal for smaller applications, like cabinet doors and sliding closet doors. 24VDC only.

Main Features

  • Smaller dimensions for difficult installation areas
  • Instant release circuit-no residual magnetism
  • Fully sealed electronics-tamper proof and weather proof
  • Mounted using steel machine screws into blind finishing nuts
  • Architectural brushed stainless steel finish (US32D/630)
  • All ferrous metal surfaces plated to ML specification
  • Ten feet [3.05m] of jacketed, stranded conductor
  • 600 lbs holding force
  • Current draw is a mere 62 mA at 24 VDC
  • Fail Safe

General Information

Name: Securitron SAM2C-24 Magnalock Shearlock, 24VDC, 600lb Holding Force
Category: Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 784607035664
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
