Hanwha HRX-1635-48TB 5-IN-1 16-Channel Pentabrid DVR, 48TB
HRX-1635 | SQ-163548
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

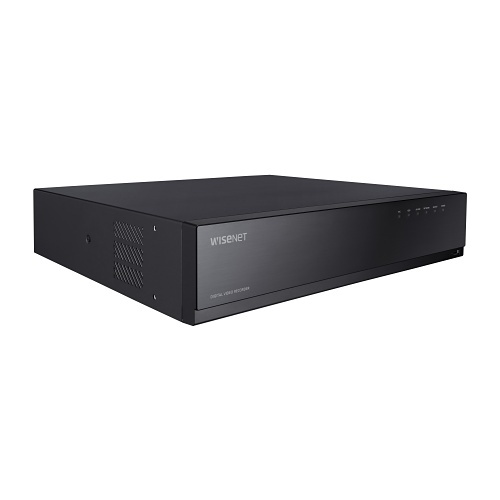

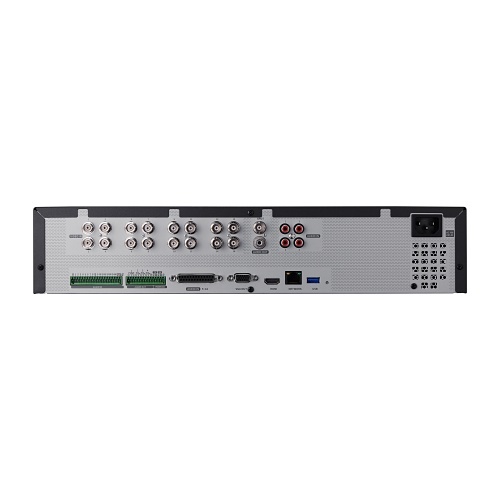

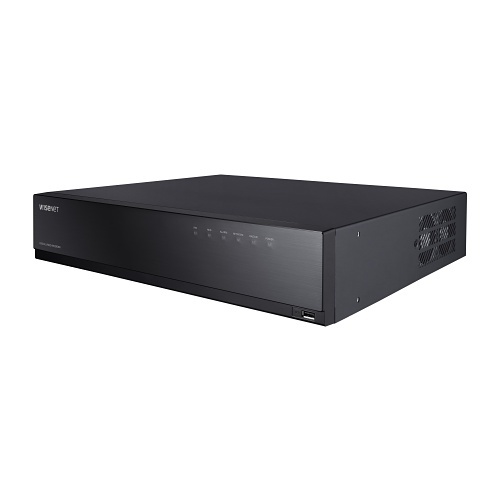

The Hanwha HRX-1635-48TB is a 5-in-1 16 Channel Pentabrid DVR designed for comprehensive surveillance needs. It supports AHD, HDTVI, HDCVI, CVBS, and IP inputs, accommodating up to 18 channels with analog maximum of 16 channels and network capability ranging from 2 to 18 channels, with resolutions up to 8MP. The DVR provides recording capabilities for analog cameras at various frame rates up to 15 fps for 8MP. It offers a maximum recording bandwidth of 128Mbps and playback bandwidth of 32Mbps. Features include P2P service via QR code for Wisenet Viewer and Mobile app connection, 4 channel audio input with 1 channel output, 16 alarm inputs, 4 relay outputs, coaxial control, and video output options including HDMI, VGA, and 1 spot monitor output. Storage support allows up to two SATA HDDs of 6TB each.
Main Features
- 5-in-1 16 Channel Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- Recording Analog Camera up 8MP(15 fps), 5MP(20 fps), 4MP(30 fps), 2MP(30 fps), 1MP(30 fps), 960H(or 720H)(30 fps), per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
General Information
Name: Hanwha HRX-1635-48TB 5-IN-1 16-Channel Pentabrid DVR, 48TB
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Hybrid Video Recorders
UPC Code: 849688019597
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number SQ-163548 Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number HRX-1635-48TB Product Model HRX-1635 Product Name 16CH Pentabrid DVR Product Type Video Surveillance Station
Connectivity Technology Wired Maximum Frame Rate 30fps Number of Channels 16 Power Consumption 200W Storage Capacity 48TB Video Formats H.264, H.265, MJPEG Video Signal Format NTSC, PAL
Recording Modes Continuous, Event, Post-event, Pre-event, Schedule
TAA Compliant No
Maximum Video Resolution 3840 x 2160
Composite Video In Yes Composite Video Out Yes HDMI Yes
Ethernet Yes Remote Management Yes
Color Black Depth 15.1" Height 3.5" Weight 9.9lb Width 17.3"
Input Voltage 12V DC
Hard Drive Capacity 48TB Recording Formats 4K
Maximum Resolution 3264 x 2448
Limited Warranty 3-Year
Country of Origin VN Environmental Certification CE, FCC, UL Environmentally Friendly Yes Operating System Compatibility Android, Apple iOS
