Product Overview

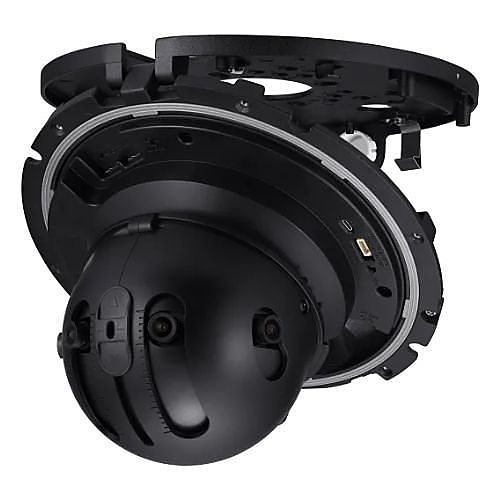

PNM-9022V provides panoramic image with 4 3MP multi-sensors. and up to 8.3MP stitching image. It offers both 180˚ and 209˚ mode, allowing users to monitor wide area with a single camera. PNM-9022V adopted same structure of PNM-9030V. Simply hang the camera body on the hinge first, then push it to the plate till the clip clicks and holds the camera body.
Main Features
- 8.3MP (4096 x 1800at180°, 4608 x 1800at209°) resolution
- 180°/209° panoramic stitching image
- 30 fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream II supported
- Tampering, Directional detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap
- micro SD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
- USB connector for easy setup with optional Wi-Fi adapter
General Information
Name: Hanwha PNM-9022V/KUS Series x 2MP Panoramic Camera, 2.8mm Fixed Lenses, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code:
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-PM922VKUS Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNM-9022V/KUS Product Model PNM-9022V/KUS Product Name 8MP Panoramic Camera Product Series P Product Type Camera
Connectivity Technology Wired Field of View H: 209°, V: 83.3° Lens Type Fixed Focus Maximum Aperture F1.6 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Video Formats H.264, H.264B, H.264H, H.264M, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66 TAA Compliant Yes
Maximum Video Resolution 4608 x 1800 Number of Sensors 4
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 95% RH (Non-condensing)
Longest Shutter Speed 2 Second Minimum Illumination 0.01 lux Shortest Shutter Speed 1/12,000 Second
Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 2.8 mm
Remote Management Yes
Durability Dustproof, Impact Resistant, Waterproof
Input Voltage 12V DC
Diameter 9.96" Mount Type Pendant Mount
Storage Type Memory Card
Country of Origin KR Features ,, 180°/209° panoramic stitching image, 30fps at all resolutions (H.265/H.264/MJPEG), 8.3MP (4096 x 1800 at 180°, 4608 x 1800at209°) resolution, H.265, H.264, MJPEG codec, WiseStream II supported, Micro SD/SDHC/SDXC 2 slots, PoE ,, Tampering, Directional detection, Virtual line, Enter/Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Heatmap, USB connector for easy setup with optional Wi-Fi adapter Impact Protection Rating IK10
