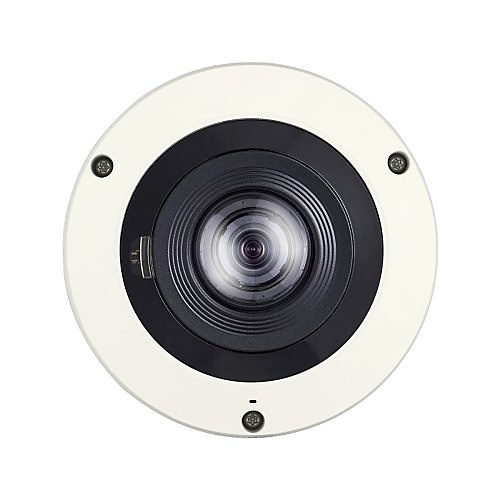

Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
XNF-8010RV/KME|SQ-XF81RVKME
Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
XNF-8010RV/KME|SQ-XF81RVKME
Key Features
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- Fisheye, Single panorama, Double panorama, Quad view
Key Features
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- Fisheye, Single panorama, Double panorama, Quad view
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- Fisheye, Single panorama, Double panorama, Quad view

Hanwha Vision
Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
XNF-8010RV/KME | SQ-XF81RVKME
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The X Plus cameras feature a modular design that makes installation and maintenance simpler than ever. With extended tilt range, DIS and shock detection with gyro sensor, motorized PTRZ, and optional skin covers, you will soon discover why X Plus is one of the most versatile camera lines on the market.
Main Features
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEG codec supported
- Fisheye, Single panorama, Double panorama, Quad view
- On board dewarping, Digital PTZ (8x), Bi-directional audio
- True WDR (120dB), WiseStream II support
- Video Analytics, Heatmap, People counting
- Queue management
- Motion detection, Handover, M12 (8010RVM), IP66/IK10
General Information
Name: Hanwha XNF-8010RV/KME Series 6MP 360° Outdoor IR Fisheye IP Camera, 1.6mm Lens, Ivory, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 8801089188373
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XF81RVKME Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNF-8010RV/KME Product Model XNF-8010RV/KME Product Name X series 6 MP sensor 360° Outdoor Fisheye Product Series X Product Type Fisheye Camera Weight 1.73lb
-
Connectivity Technology Wired Effective Camera Resolution 6MP Field of View H: 192°, V: 192°, D: 192° Lens Type Fixed Maximum Aperture F1.6 Maximum Frame Rate 30fps Minimum Focal Length 1.6mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.264B, H.264H, H.264M, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 49.21 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 2048 x 2048
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
-
Longest Shutter Speed 1/12000 Second Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 1.6 mm Lens Included Yes Maximum Focal Length 1.6 mm
-
Remote Management Yes
-
Color Ivory Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye
-
Input Voltage 12V DC
-
Diameter 5.7"
-
Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Face Detection, Fog Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
