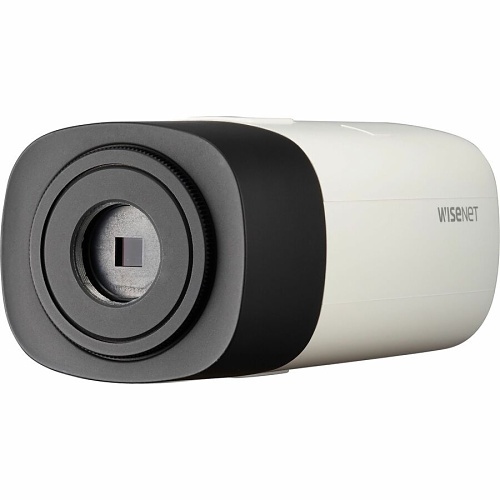

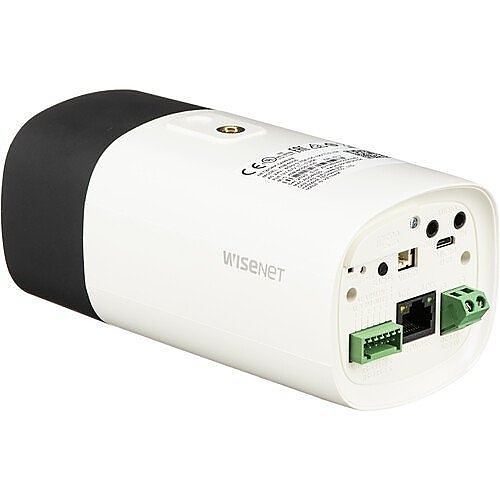

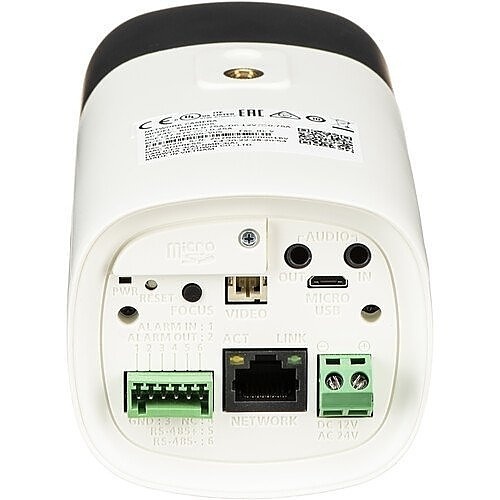

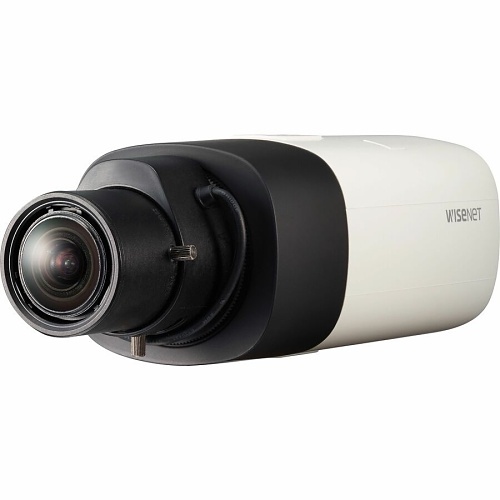

Hanwha XNB-8000P/AJ Series 5MP WDR Box IP Camera, Lens Not Included, Black/Ivory, TAA Compliant
XNB-8000P/AJ|SQ-XNB800PAJ
Hanwha XNB-8000P/AJ Series 5MP WDR Box IP Camera, Lens Not Included, Black/Ivory, TAA Compliant
XNB-8000P/AJ|SQ-XNB800PAJ
Key Features
- 5MP H.265 Box Camera
- 0.07Lux at F1.2 (Color), 0.007Lux at F1.2 (B/W)
- Max. 30 fps at all resolutions (H.265/H.264)
Key Features
- 5MP H.265 Box Camera
- 0.07Lux at F1.2 (Color), 0.007Lux at F1.2 (B/W)
- Max. 30 fps at all resolutions (H.265/H.264)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 5MP H.265 Box Camera
- 0.07Lux at F1.2 (Color), 0.007Lux at F1.2 (B/W)
- Max. 30 fps at all resolutions (H.265/H.264)
Hanwha Vision
Hanwha XNB-8000P/AJ Series 5MP WDR Box IP Camera, Lens Not Included, Black/Ivory, TAA Compliant
XNB-8000P/AJ | SQ-XNB800PAJ
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The X Plus cameras feature a modular design that makes installation and maintenance simpler than ever. With extended tilt range, DIS and shock detection with gyro sensor, motorized PTRZ, and optional skin covers, you will soon discover why X Plus is one of the most versatile camera lines on the market.
Main Features
- 5MP H.265 Box Camera
- 0.07Lux at F1.2 (Color), 0.007Lux at F1.2 (B/W)
- Max. 30 fps at all resolutions (H.265/H.264)
- DIS with built-in Gyro sensor
- Loitering, Directional detection, Fog detection
- Digital auto tracking, Sound classification
- Motion detection, Handover
- Dual SD slots (Max. 512GB)
- WiseStream II support
General Information
Name: Hanwha XNB-8000P/AJ Series 5MP WDR Box IP Camera, Lens Not Included, Black/Ivory, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Box Cameras
UPC Code: 8801089090720
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XNB800PAJ Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNB-8000P/AJ Product Model XNB-8000P/AJ Product Name 5MP Network Camera Product Series X Product Type Network Camera Weight 0.93lb
-
Connectivity Technology Wired Effective Camera Resolution 5MP Maximum Frame Rate 30 fps Night Vision Yes Night Vision Type Infrared/Color Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
TAA Compliant Yes
-
Maximum Video Resolution 2560 x 1920
-
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity <90% RH
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.007 lux Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Remote Management Yes
-
Color Black, Ivory Depth 5.82" Height 2.62" Width 2.88"
-
Input Voltage 12V DC, 24V AC
-
Mount Type Box Mount, C-Mount, CS-Mount
-
Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range
