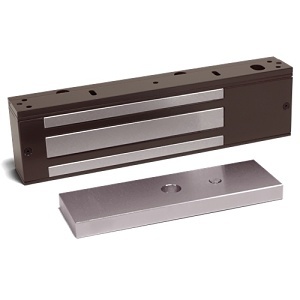

SDC 1581Y Single Electromagnetic Lock, 12/24VDC, 335 lbs Holding Force, Dull Black
1581Y
|SZ-1581Y
Shop all Security Door Controls
SDC 1581Y Single Electromagnetic Lock, 12/24VDC, 335 lbs Holding Force, Dull Black
1581Y | SZ-1581Y
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
SDC’s electromagnetic locks are suited for interior doors, perimeter exit doors and entrances that require failsafe emergency release capability. The patented EMLock® design represents the pinnacle of magnetic lock evolution with modular assembly that makes them easy to stock, install, upgrade and maintain. The housing design provides a superior appearance with a plated or anodized finish on all sides. The interlocking EZ mount assembly leaves hands free for wiring and securing of mounting screws. EMLocks® are UL listed and ANSI grade 1 compliant .
Main Features
- Dull Black
- Uniform design and installation
- Wire access chamber with terminal block
- Interlocking quick mount assembly
- Auto-sensing dual voltage
- Voltage and current spike protection
- Instant release anti-residual magnetism circuitry
- Captive lock mounting screws
- Self-drilling and tapping sheet metal screws
- 10/32” machine screws included
General Information
Name: SDC 1581Y Single Electromagnetic Lock, 12/24VDC, 335 lbs Holding Force, Dull Black
Category: Security Door Controls, Access Control, Locking Devices, Magnetic Locks
UPC Code: 712905202556
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SZ-1581Y Brand Name Security Door Controls Manufacturer Part Number 1581Y Product Type Magnetic Lock
Door Supported Single Door
Color Black Depth 1.3" Height 2.12" Width 8.7"
Finishing Anodized Holding Force 650 lb
Country of Origin US Features Bond Alert Status, Door Position Sensor
