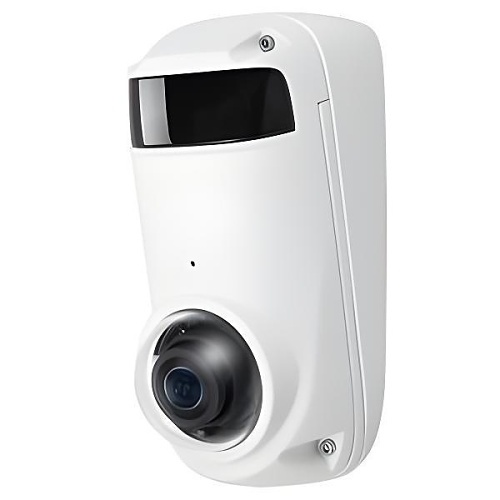

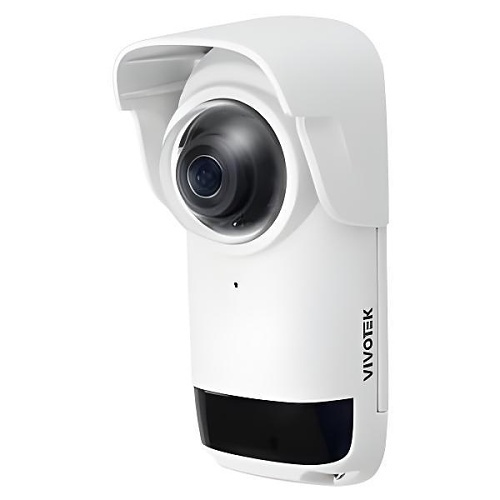

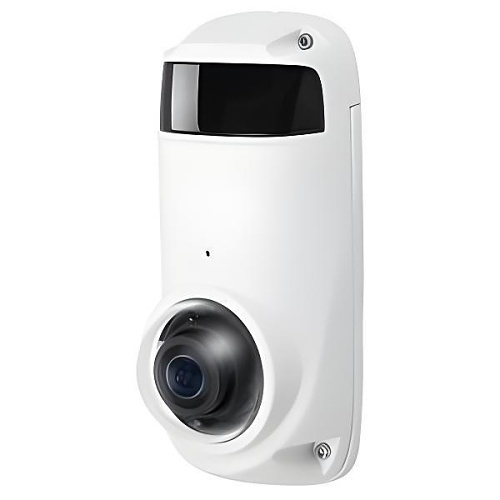

VIVOTEK CC9381-HV-V2 V Series 5MP IR Compact Panoramic AI IP Camera, WDR, 1.47mm Fixed-Focal Lens
CC9381-HV-V2|T6-CC9381HVV
VIVOTEK CC9381-HV-V2 V Series 5MP IR Compact Panoramic AI IP Camera, WDR, 1.47mm Fixed-Focal Lens
CC9381-HV-V2|T6-CC9381HVV
Key Features
What's Included
- 5MP CMOS Sensor
- Anti-Ligature Design
- 180° Horizontal Panoramic View
Key Features
What's Included
- 5MP CMOS Sensor
- Anti-Ligature Design
- 180° Horizontal Panoramic View
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- 5MP CMOS Sensor
- Anti-Ligature Design
- 180° Horizontal Panoramic View
VIVOTEK
VIVOTEK CC9381-HV-V2 V Series 5MP IR Compact Panoramic AI IP Camera, WDR, 1.47mm Fixed-Focal Lens
CC9381-HV-V2 | T6-CC9381HVV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Meet the Compact Panoramic Camera - Small but mighty, it delivers a 180-degree view with near-field imaging, eliminates any blind spots. Included accessories offer both outdoor protection and increased flexibility, allowing you to tilt and adjust the camera angle. Equipped with Smart VCA and vision object analytics, this camera elevates your security with AI intelligence, empowering you to see everything, from every angle.
Main Features
- 5MP CMOS Sensor
- Anti-Ligature Design
- 180° Horizontal Panoramic View
- 180° IR Illuminators up to 20 m
- WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in Microphone
- 3D Noise Reduction for Low-light Conditions
- H.265 Compression
- Smart Stream III
General Information
Name: VIVOTEK CC9381-HV-V2 V Series 5MP IR Compact Panoramic AI IP Camera, WDR, 1.47mm Fixed-Focal Lens
Category: VIVOTEK, Video Surveillance, IP Cameras, Panoramic Cameras, ADI Pro Rewards
UPC Code: 4710470000000
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number T6-CC9381HVV Brand Name VIVOTEK Manufacturer Part Number CC9381-HV-V2 Product Name CC9381-HV-V2 Network Camera Product Series V Product Type Network Camera Weight 1.08lb
-
Effective Camera Resolution 5MP Field of View 180° Diagonal, 180° Horizontal, 120° Vertical Lens Type Fixed Maximum Aperture f/2.7 Maximum Frame Rate 30fps Night Vision Yes Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66
-
Maximum Video Resolution 2560 x 1920
-
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 0.98
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.08 lux Shortest Shutter Speed 1/32000 Second
-
Focal Length 1.47 mm Lens Included Yes Maximum Focal Length 1.47 mm
-
Durability Dustproof, Impact Resistant, Waterproof
-
Storage Type Memory Card
-
Environmental Certification UL Environmentally Friendly Yes Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents Mounting Bracket, Quick Installation Guide, Screw pack, Sunshield, Tilt bracket
