Eaton Tripp Lite N784-001-ST Gigabit Multimode Fiber to Ethernet Media Converter, 10/100BaseT to 100BaseFX-ST, 1.25 mi (2 km), 1310nm
N784-001-ST
|TC-N784001ST
Shop All Eaton Tripp Lite
Eaton Tripp Lite N784-001-ST Gigabit Multimode Fiber to Ethernet Media Converter, 10/100BaseT to 100BaseFX-ST, 1.25 mi (2 km), 1310nm
N784-001-ST | TC-N784001ST
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

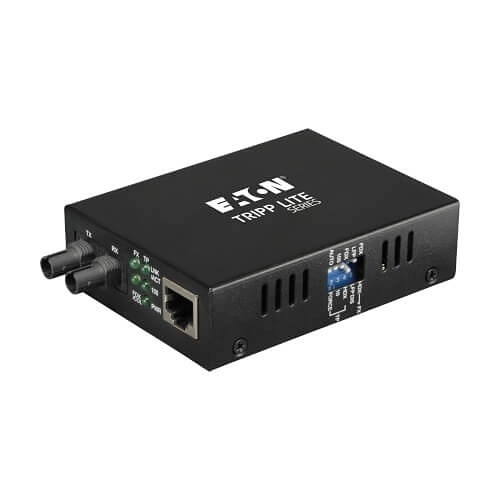

The N784-001-ST 10/100 Multimode Media Converter is an economical way to extend the distance (up to 2km) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. DIP switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter or USB connection (switch selectable).
Main Features
- Connects 10/100BaseT Ethernet to 100BaseFX Fiber
- Auto MDI/MDI-X for easy network integration
- Auto-sensing UTP port for network speed

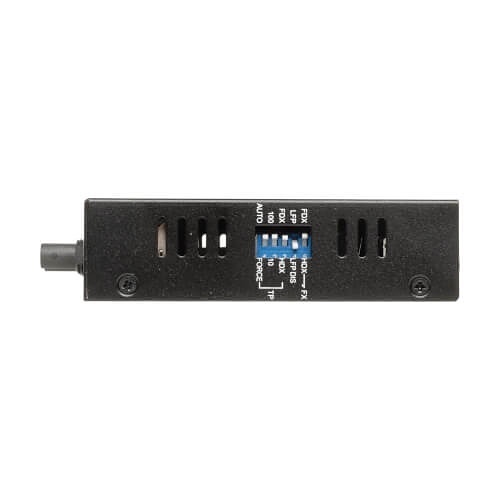

- Switch selectable half/full duplex on fiber port
- Supports fiber Lengths up to 2Km

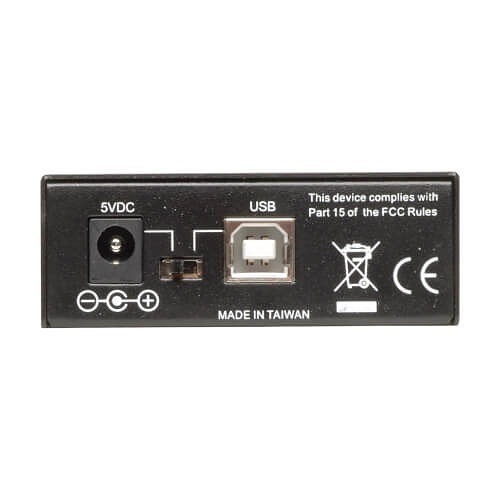

- Dual Power options: AC-DC Adapter or USB

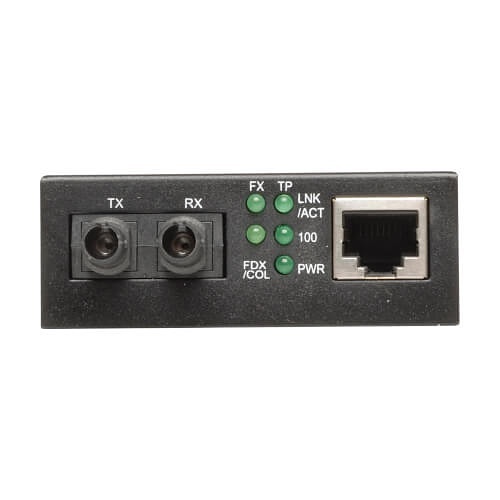

- 5 LED function lights for status indication
- Compatible with 62.5/125 or 50/125 Multimode cable
- Wavelength: 1310nm for optimal performance
- Link Fault Pass-through for network troubleshooting
General Information
Name: Eaton Tripp Lite N784-001-ST Gigabit Multimode Fiber to Ethernet Media Converter, 10/100BaseT to 100BaseFX-ST, 1.25 mi (2 km), 1310nm
Category: Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 037332130907
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-N784001ST Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N784-001-ST Packaged Quantity 1 Product Model N784-001-ST Product Name N784-001-ST UTP to Fiber Media Converter Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of ST Ports 1
Network Technology 10/100Base-TX, 100Base-FX
Ethernet Technology Fast Ethernet
Depth 3.8" Height 1" Width 2.8"
Power Source AC Adapter
Limited Warranty 2-Year
Country of Origin CN Package Contents - 10/100 Multimode Media Converter, UTP - ST
- External Power Supply with NEMA 1-15P Plug ( 100-240V )
- Owner's Manual
