Eaton Tripp Lite N784-H01-SCSM Hardened Copper to RJ45 Fiber Media Converter
Eaton Tripp Lite N784-H01-SCSM Hardened Copper to RJ45 Fiber Media Converter
- Converts copper Ethernet to Singlemode fiber optic signal
- Extends network connection up to 30 km (18.6 mi)
- Supports 10/100 Mbps speeds with RJ45/SC Connectors
- Converts copper Ethernet to Singlemode fiber optic signal
- Extends network connection up to 30 km (18.6 mi)
- Supports 10/100 Mbps speeds with RJ45/SC Connectors
Sign In for Dealer Pricing
Become an ADI Customer- Converts copper Ethernet to Singlemode fiber optic signal
- Extends network connection up to 30 km (18.6 mi)
- Supports 10/100 Mbps speeds with RJ45/SC Connectors

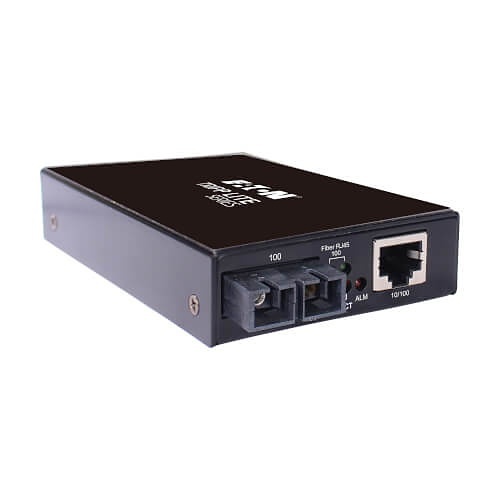

Eaton Tripp Lite N784-H01-SCSM Hardened Copper to RJ45 Fiber Media Converter
N784-H01-SCSM | TC-N784H01SC
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview
Features | Extends a Network Connection up to 30 km over SC Singlemode Fiber Optic Cable
This network media converter converts a copper Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 30 kilometers (18.6 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-SCSM with singlemode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.
Monitor Your Installation with Link Fault Signaling and Loop Back Functions

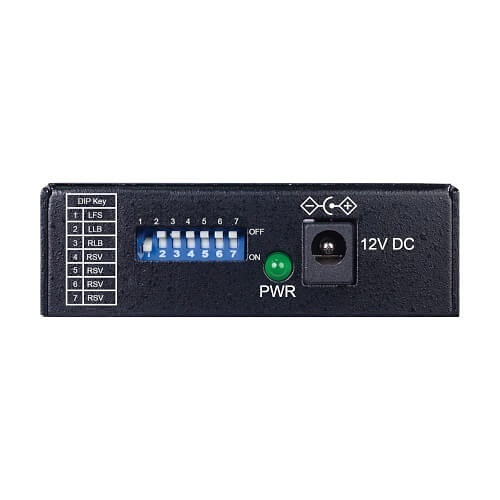

Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.
LEDs Indicate Installation Performance and Diagnostic Functions

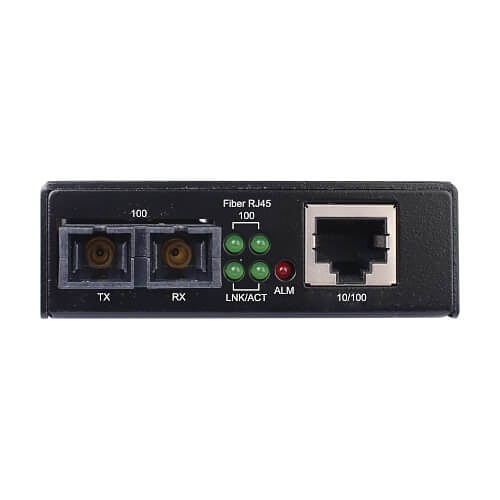

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.
Protective Metal Housing Built to Withstand a Variety of Hazards
The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.
Works in Tandem with Tripp Lite's N785-CH12 Chassis
House and power up to 12 Tripp Lite media converters, including the N784-H01-SCSM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.
TAA-Compliant for GSA Schedule Purchases
The N784-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Main Features
- Converts copper Ethernet to Singlemode fiber optic signal
- Extends network connection up to 30 km (18.6 mi)
- Supports 10/100 Mbps speeds with RJ45/SC Connectors
- Operates in extreme temperatures from -10° to 60°C
- Features Link Fault Signaling and Loop Back functions
- Easy-to-read LEDs for status and diagnostics
- Hardened Aluminum case for durability and protection
- Compatible with N785-CH12 12-port chassis
General Information
Specifications
-
ADI Part Number TC-N784H01SC Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N784-H01-SCSM Product Model N784-H01-SCSM Product Name N784-H01-SCSM Transceiver/Media Converter Product Series N784 Product Type Transceiver/Media Converter Weight 8.43oz
-
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 1.80W
-
TAA Compliant Yes
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
-
Network Technology 10/100Base-TX, 100Base-FX
-
Ethernet Technology 10 Gigabit Ethernet
-
Depth 4.3" Height 0.9" Width 2.9"
-
Plug/Connector Type NEMA 1-15P Power Source AC Adapter
-
Limited Warranty 2-Year
-
Country of Origin TW Environmentally Friendly Yes
