Image of TC-P58612HDV

Eaton Tripp Lite P586-012-HD-V2A Eaton Tripp Lite Mini Displayport 1.2a to HDMI 2.0 Active Adapter Cable 4K 2k 12ft 12'

P586-012-HD-V2A|TC-P58612HDV

Eaton Tripp Lite P586-012-HD-V2A Eaton Tripp Lite Mini Displayport 1.2a to HDMI 2.0 Active Adapter Cable 4K 2k 12ft 12'

P586-012-HD-V2A|TC-P58612HDV
Key Features
What's Included
  • Connects mDP or Thunderbolt to 4K HDMI display
  • Supports UHD Resolutions up to 4K at 60 Hz
  • Compatible with Single-Mode and Dual-Mode DisplayPort
Key Features
What's Included
  • Connects mDP or Thunderbolt to 4K HDMI display
  • Supports UHD Resolutions up to 4K at 60 Hz
  • Compatible with Single-Mode and Dual-Mode DisplayPort

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • Connects mDP or Thunderbolt to 4K HDMI display
  • Supports UHD Resolutions up to 4K at 60 Hz
  • Compatible with Single-Mode and Dual-Mode DisplayPort
Eaton Tripp Lite

Eaton Tripp Lite P586-012-HD-V2A Eaton Tripp Lite Mini Displayport 1.2a to HDMI 2.0 Active Adapter Cable 4K 2k 12ft 12'

P586-012-HD-V2A | TC-P58612HDV

Please sign in to view pricing and availability and to add to cart.

Accessories

Cable Raceways
Image of 0E-75DW2
ADI # 0E-75DW2
MODEL # 0E-75DW2
Sign In for Dealer Pricing
Cable Ties & Straps
W Box Cable Tie
ADI # 0E-HOOKLOOP
MODEL # 0E-HOOKLOOP
Sign In for Dealer Pricing
Conduit
W Box UL Listed Corrugated Flexible Conduit w/ Nylon Pull Tape 1" X 100'
ADI # 0E-RG100100
MODEL # 0E-RG100100
Sign In for Dealer Pricing
Conduit
W Box 0E-RG15050 1 1/2" x 50' Corrugated Flexible Conduit, Orange
ADI # 0E-RG15050
MODEL # 0E-RG15050
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

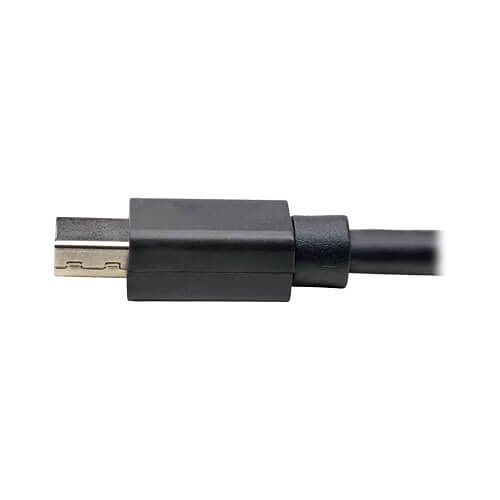

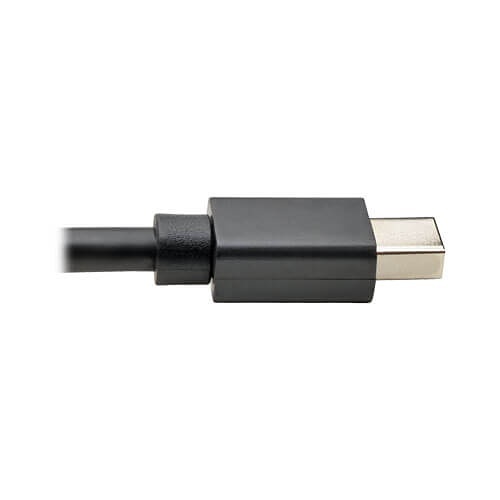

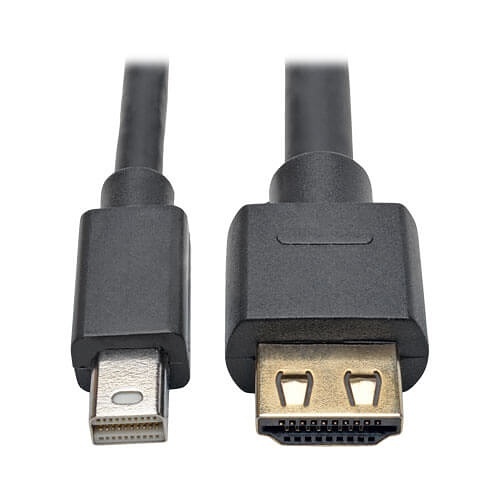

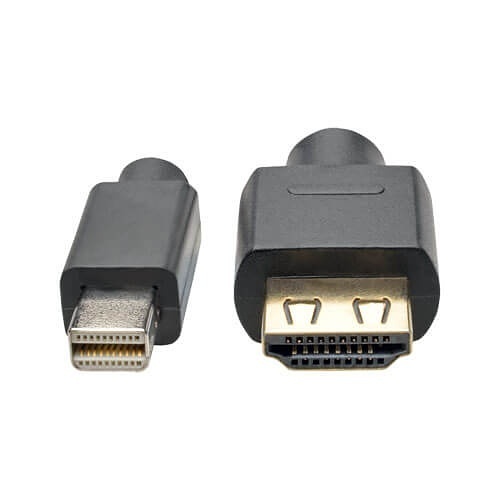

The P586-012-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M) connects an mDP- or Thunderbolt-enabled PC, Mac or Tablet (such as the Surface Pro series) to the HDMI port on a 4K monitor, projector or television. With an mDP male connector on one end and a gold-plated high-grip HDMI male connector on the other, this cable requires no separate power adapter. It lets you continue using an existing 4K HDMI display without the extra expense of buying a new mDP monitor.

Recommended for displaying crystal-clear video on a large monitor or digital sign, this cable supports HDMI 2.0 with full UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. The P586-012-HD-V2A also supports rich, full audio (if your DisplayPort™ card supports audio passthrough) and the latest HDCP 2.2 (High-Bandwidth Digital Content Protection) standards.

Because it's an active adapter, the 12-foot P586-012-HD-V2A is compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output. It's perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.

The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Its special high-grip plug prevents a loose or accidentally disconnected cable from causing picture loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Main Features

  • Connects mDP or Thunderbolt to 4K HDMI display
  • Supports UHD Resolutions up to 4K at 60 Hz
  • Compatible with Single-Mode and Dual-Mode DisplayPort
  • No separate Power Adapter required
  • Gold-Plated HDMI Connector for maximum conductivity
  • High-grip HDMI Plug prevents disconnections
  • Integral strain relief for flexibility and reduced stress

General Information

Name: Eaton Tripp Lite P586-012-HD-V2A Eaton Tripp Lite Mini Displayport 1.2a to HDMI 2.0 Active Adapter Cable 4K 2k 12ft 12'
Category: Pro AV, Commercial Connector Cables, Pro DisplayPort to HDMI Cables
UPC Code: 037332200624
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources
