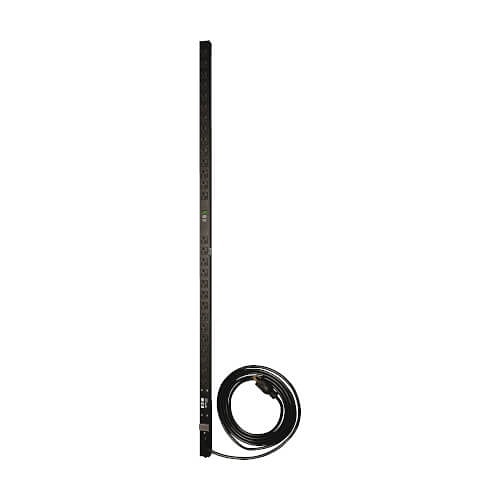

Tripp Lite PDUMV20 1.9kW 1-Phase PDU with Digital Spot Meter, 120V Outlets (28 5-15/20R), L5-20P and 5-20P Adapter, 15'Cord, 0U Vertical

Brand: Tripp Lite by Eaton
ADI #:TC-PDUMV20 Model #: PDUMV20  Name: Tripp Lite PDUMV20 1.9kW 1-Phase PDU with Digital Spot Meter, 120V Outlets (28 5-15/20R), L5-20P and 5-20P Adapter, 15'Cord, 0U Vertical
  • Metered single phase 120V 20A 0U 60in / 152cm vertical rackmount PDU
  • Two-digit current meter reports output current in amps
  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
Tripp Lite PDUMV20 1.9kW 1-Phase PDU with Digital Spot Meter, 120V Outlets (28 5-15/20R), L5-20P and 5-20P Adapter, 15'Cord, 0U Vertical

Product Overview

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

General Information

Name : Tripp Lite PDUMV20 1.9kW 1-Phase PDU with Digital Spot Meter, 120V Outlets (28 5-15/20R), L5-20P and 5-20P Adapter, 15'Cord, 0U Vertical , Tripp Lite by Eaton
Category : Power Distribution Units
UPC Code : 037332132543
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-PDUMV20
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : PDUMV20
Product Model : PDUMV20
Product Name : PDUMV20 PDU Metered 120V 20A 28 Outlet
Product Type : PDU
Weight (Approximate) (g) : 2358.68

Technical Information

Output Voltage : 120V AC
Output Voltage (V AC) : 120
PDU Type : Local Metered
Power Rating (Watt) : 2400 W
Power Rating (Watt) (W) : 2400
Receptacle Detail : 28 x NEMA 5-15/20R
Receptacle Type : NEMA 5-15/20R

Category Specific Attributes

Output Voltage (V) : 120

Physical Characteristics

Depth : 1.5"
Depth (mm) : 38.1
Height : 3"
Height (mm) : 76.2
Mounting Orientation : Vertical
Weight (Approximate) : 5.20 lb
Width : 60"
Width (mm) : 1524

Power Description

Input Voltage : 120V AC
Input Voltage (V AC) : 120
Plug/Connector Type : NEMA L5-20P

Product Information

Mount Type : Rack Mount
Protection Type : Overload Protection

Warranty

Limited Warranty : 2 Year

Miscellaneous

Country of Origin : China
Environmentally Friendly : Yes

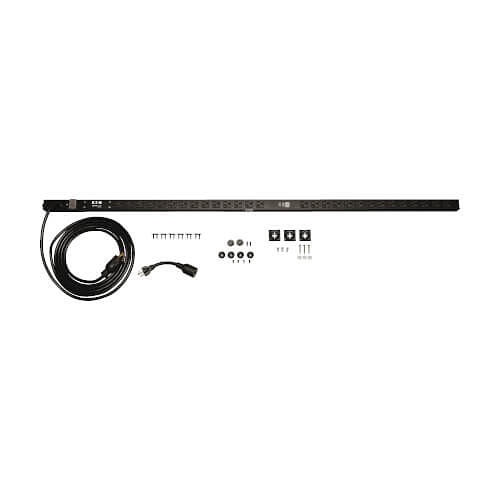

Package Contents : <ul><li>PDUMV20 PDU Metered 120V 20A 28 Outlet</li><li>(1) L5-20P to 5-20P plug adapter</li><li>Mounting hardware</li><li>Six protective outlet covers</li><li>Instruction manual with warranty information</li></ul>
