Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and 4 C19 Outlets, L6-30P Input, 0U, TAA

Brand: Tripp Lite by Eaton
ADI #:TC-PDUMV3HV Model #: PDUMV30HVNETLX  Name: Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and 4 C19 Outlets, L6-30P Input, 0U, TAA
  • 5/5.8kW 208/240V 30A switched PDU
  • 24 individually controllable outlets-20 C13, 4 C19
  • Built-in LX Platform interface for remote access

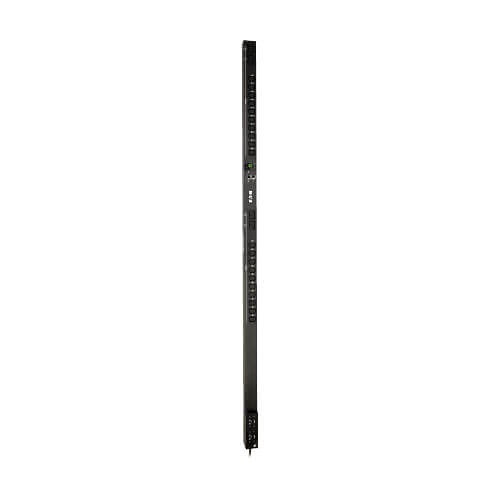

Image of TC-PDUMV3HV

Product Overview

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

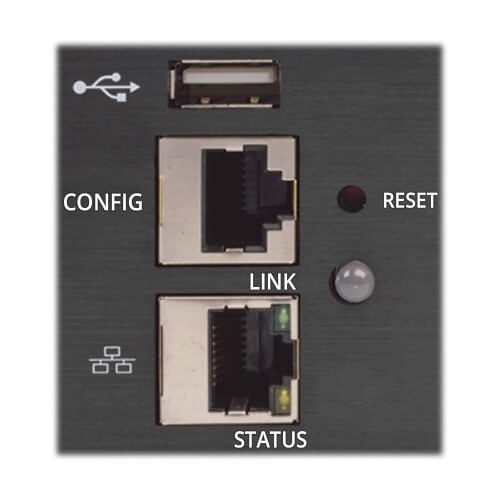

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

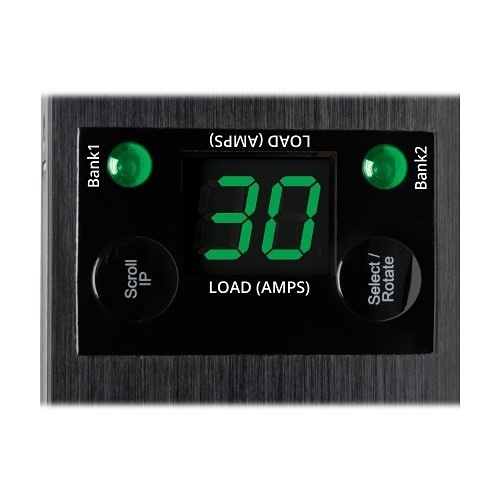

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

General Information

Name : Tripp Lite PDUMV30HVNETLX Single-Phase Switched PDU with LX Interface, 10' (3m) Cord, 5.5kW, 208/230V 30A, 20 C13 and 4 C19 Outlets, L6-30P Input, 0U, TAA , Tripp Lite by Eaton
Category : Power Distribution Units
UPC Code : 037332202550
Country of Origin : Taiwan. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-PDUMV3HV
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : PDUMV30HVNETLX
Product Model : PDUMV30HVNETLX
Product Name : PDUMV30HVNETLX 24-Outlet PDU
Product Type : PDU
Weight (Approximate) (g) : 5216.312

Technical Information

Output Voltage : 230 V AC
Output Voltage (V AC) : 230
PDU Type : Switched
Phase : Single Phase
Power Rating (Watt) : 5800 W
Power Rating (Watt) (W) : 5800
Receptacle Detail : 20 x IEC 60320 C13, 4 x IEC 60320 C19
Receptacle Type : IEC 60320 C13, IEC 60320 C19

Management

Management : <b>Protocols:</b><br /> <ul> <li>HTTP</li> <li>HTTPS</li> <li>SMTP</li> <li>SNMPv1</li> <li>SNMPv2</li> <li>SNMPv3</li> <li>telnet</li> <li>SSH</li> <li>FTP</li> <li>DHCP</li> <li>NTP</li> </ul>

Physical Characteristics

Depth : 2.7"
Depth (mm) : 67.31
Height : 70"
Height (mm) : 1778
Mounting Orientation : Vertical
Rack Height : 0U
Weight (Approximate) : 11.50 lb
Width : 2.2"
Width (mm) : 55.626

Power Description

Input Current : 30 A
Input Current (A) : 30
Input Voltage : 230 V AC
Input Voltage (V AC) : 230
Plug/Connector Type : NEMA L6-30P

Product Information

Mount Type : Rack-mountable
Protection Type : Overload Protection

Warranty

Limited Warranty : 2 Year

Miscellaneous

Country of Origin : Taiwan
Environmental Certification : RoHS
Environmentally Friendly : Yes
Package Contents : <ul> <li>PDUMV30HVNETLX 24-Outlet PDU</li> <li>Configuration Cable</li> <li>24 x Cable Ties</li> <li>2 x Cord Retention Brackets</li> <li>Rack-mounting Hardware</li> <li>Mounting Bracket Accessory</li> <li>Owner's Manual</li> </ul>
TAA Compliant : Yes
