Eaton Tripp Lite PDUNVR30LX 2.9kW Single-Phase Monitored Per-Outlet PDU, LX Platform, 24 5-15 / 20R Outlets (120V), L5-30P Input, TAA Compliant
Eaton Tripp Lite PDUNVR30LX 2.9kW Single-Phase Monitored Per-Outlet PDU, LX Platform, 24 5-15 / 20R Outlets (120V), L5-30P Input, TAA Compliant
- 2.9kW Single-Phase PDU with 24 NEMA 5-15/20R Outlets
- Real-time remote monitoring of voltage and load levels
- Advanced network Power monitoring with 1% billing-grade accuracy
- 2.9kW Single-Phase PDU with 24 NEMA 5-15/20R Outlets
- Real-time remote monitoring of voltage and load levels
- Advanced network Power monitoring with 1% billing-grade accuracy
Sign In for Dealer Pricing
Become an ADI Customer- 2.9kW Single-Phase PDU with 24 NEMA 5-15/20R Outlets
- Real-time remote monitoring of voltage and load levels
- Advanced network Power monitoring with 1% billing-grade accuracy

Eaton Tripp Lite PDUNVR30LX 2.9kW Single-Phase Monitored Per-Outlet PDU, LX Platform, 24 5-15 / 20R Outlets (120V), L5-30P Input, TAA Compliant
PDUNVR30LX | TC-PDUNVR30L
Please sign in to view pricing and availability and to add to cart.

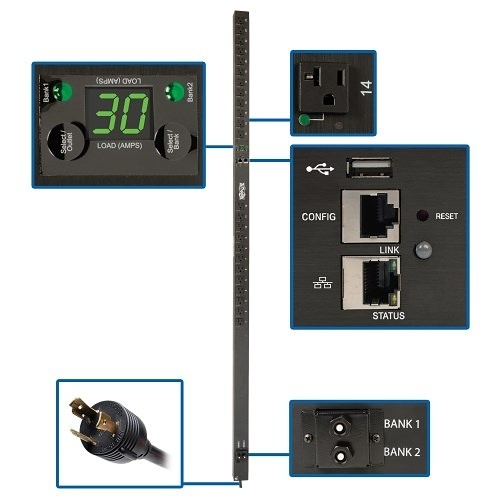

Product Overview
2.9kW Single-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for your small-to-mid-sized data center, computer room or high-density network closet, the PDUNVR30LX features 24 NEMA 5-15/20R 120V outlets in two breakered load banks, which distribute AC power to rack equipment. Advanced network power monitoring provides 1% billing-grade power consumption data for devices connected to each outlet.
Monitored Per-Outlet PDU Lets You Keep Track of Power Consumption in Real Time
Not only can you remotely monitor voltage and frequency, but the PDUNVR30LX also allows metering of input current, as well as output current per bank and per outlet. Banks can be individually monitored to ensure proper load balance and prevent downtime. Monitoring each outlet allows you to study power consumption trends for each connected device. This helps you detect hardware problems and network traffic bottlenecks, as well as compare power usage among various devices.

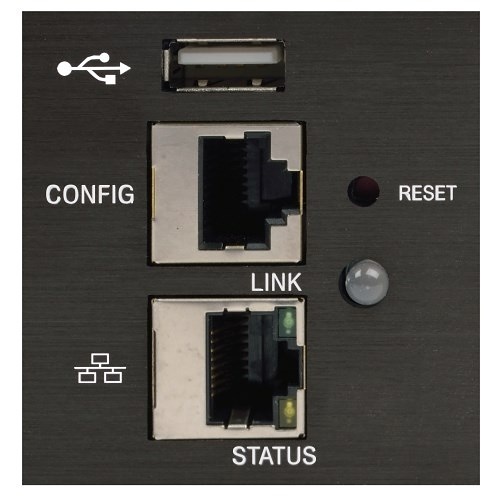

Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, Telnet or SSH. Full 10/100/1000 Mbps auto-sensing enables optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities.
Auto Probe Allows Autonomous PDU Management
The LX Platform interface allows use of Tripp Lite's IP-based Auto Probe feature, which ensures continuous network uptime by communicating with other network devices. If communication is lost, Auto Probe autonomously performs one or more user-configurable actions that help you return the network devices to an operational state, including email notifications. The innovative Auto Probe is especially ideal for ATMs, retail kiosks, digital signage, edge computing and PC gaming centers.

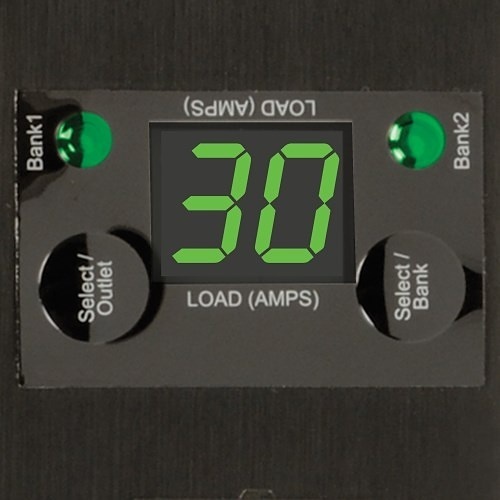

Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment.

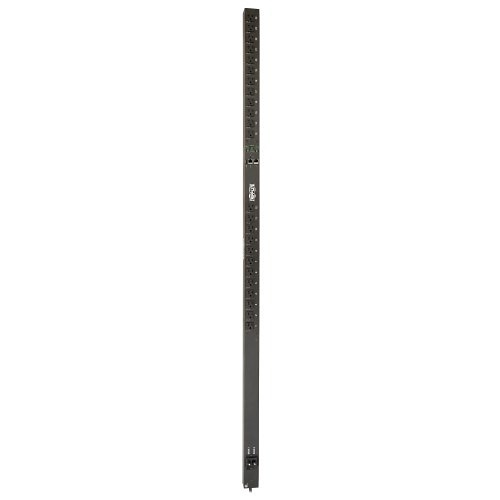

Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with a NEMA L5-30P input connects the PDU to a compatible AC power source, such as a generator or protected UPS.
TAA-Compliant for GSA Schedule Purchases
The PDUNVR30LX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Main Features
- 2.9kW Single-Phase PDU with 24 NEMA 5-15/20R Outlets
- Real-time remote monitoring of voltage and load levels
- Advanced network Power monitoring with 1% billing-grade accuracy
- Built-in LX Platform Network Management Card for 24/7 remote access
- Digital ammeter for load monitoring and overload prevention
- Easy vertical installation in EIA-Standard 19" rack
- 10' Cord with NEMA L5-30P Input for AC Power connection
General Information
Specifications
-
ADI Part Number TC-PDUNVR30L Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number PDUNVR30LX Product Name 24-Outlets PDU Product Type PDU Sector Data Comm & Networking Weight 9.94lb
-
PDU Type Monitored Phase Single Phase Receptacle Detail 24 x NEMA 5-15/20R Receptacle Type NEMA 5-15/20R
-
TAA Compliant Yes
-
Network (RJ-45) Yes
-
Application/Usage Commercial Depth 2" Height 70" Mounting Orientation Vertical Rack Height 0U Width 2.2"
-
Input Current 30A Input Voltage 120V AC Plug/Connector Type NEMA L5-30P
-
Mount Type Rack Mount Protection Type Overload Protection
-
Limited Warranty 2-Year
-
Country of Origin TW Environmentally Friendly Yes
