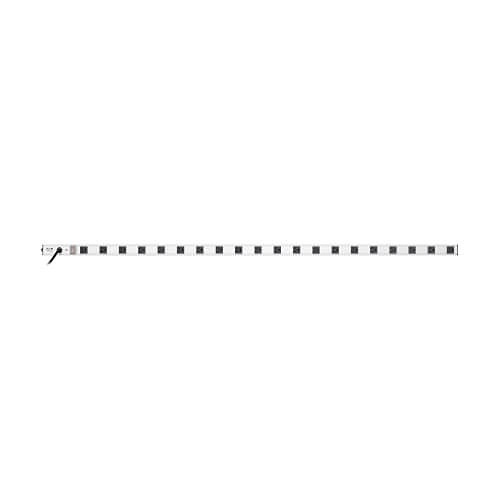

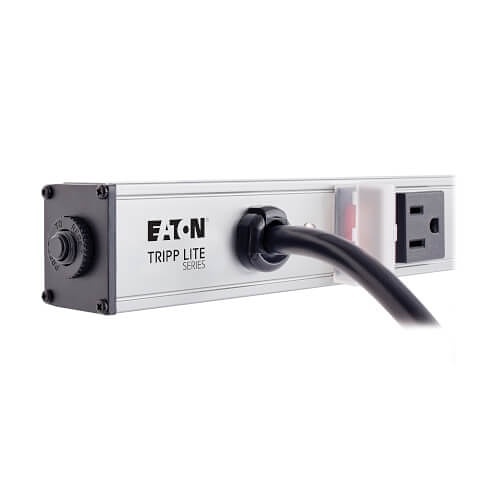

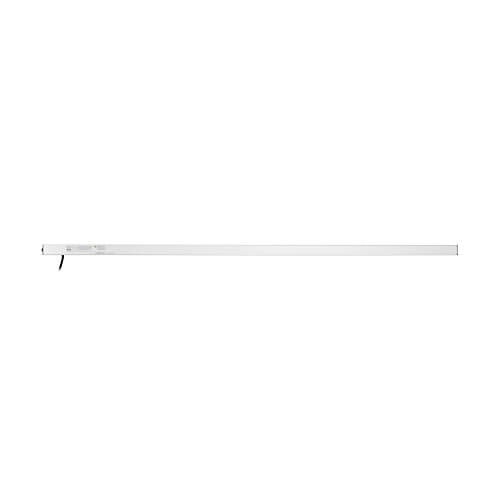

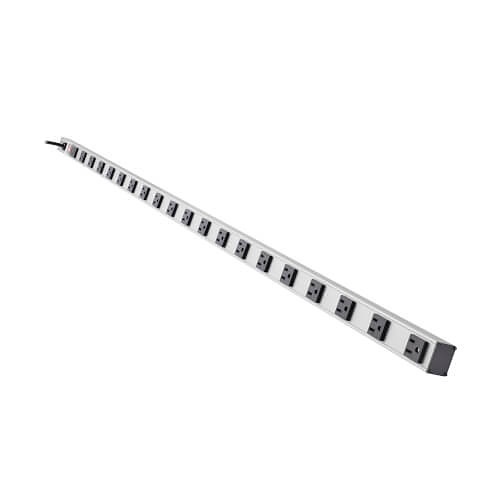

Tripp Lite PS6020 Tripp Lite Power Strip 120V 5-15R 20 Outlet 15' Cord Vertical Metal 0URM

Brand: Tripp Lite by Eaton
ADI #:TC-PS6020 Model #: PS6020  Name: Tripp Lite PS6020 Tripp Lite Power Strip 120V 5-15R 20 Outlet 15' Cord Vertical Metal 0URM
  • Sturdy all-metal 60" corded strip format with 2.795" center-to-center outlet spacing
  • Included mounting hardware
  • Includes 20 NEMA 5-15R output receptacles
Tripp Lite Power Strip 120v 5-15r 20 Outlet 15' Cord Vertical Metal 0urm

Product Overview

Tripp Lite's PS6020 power strip offers 15 amp, 120V multi-outlet AC power distribution in a convenient 60 inch mountable housing. Offers horizontal or vertical power distribution in rackmount, raceway and workbench applications. Includes 20 NEMA 5-15R output receptacles with 2.795 inch center-to-center spacing, 15 ft AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments. INPUT/OUTPUT: Input: NEMA 5-15P/Output: 20 NEMA 5-15RELECTRICAL: 120V AC, 50/60Hz, 15A FORMAT: 60 in. corded, mountable power strip

General Information

Name : Tripp Lite PS6020 Tripp Lite Power Strip 120V 5-15R 20 Outlet 15' Cord Vertical Metal 0URM , Tripp Lite by Eaton
Category : Power Strips
UPC Code : 037332011473
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-PS6020
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : PS6020
Packaged Quantity : 1
Product Model : PS6020
Product Name : Power Strip 120V AC
Product Type : Power Strip
Weight (Approximate) (g) : 2267.962

Technical Information

Cord Length (mm) : 4572
Maximum Frequency (Hz) : 60
Receptacles Spacing : 2.80"
Receptacles Spacing (mm) : 70.993

Audio

Shipping Weight (Approximate) (g) : 2404.04

Interfaces/Ports

Receptacles : 20 x NEMA 5-15R

Physical Characteristics

Color : Silver
Color Family : Multicolor
Depth : 60"
Depth (mm) : 1524
Form Factor : Rack mount
Height : 1.5"
Height (mm) : 38.1
Shipping Depth (mm) : 1610.36
Shipping Height (mm) : 60.96
Shipping Width (mm) : 99.06
Weight (Approximate) : 5 lb
Width : 1.5"
Width (mm) : 38.1

Power Description

Circuit Breaker : Yes
Cord Length : 15'
Input Voltage : 120V AC
Input Voltage (V AC) : 120
Maximum Frequency : 60 Hz
Maximum Input Current : 15 A
Maximum Input Current (A) : 15
Maximum Output Voltage : 120 V AC
Plug/Connector Type : NEMA 5-15P
Power Rating : 1800W
Power Rating (W) : 1800
Power Switch : Yes

Product Information

Mount Type : Rack Mount

Warranty

Limited Warranty : Lifetime

Miscellaneous

Certifications & Standards : <ul><li>UL1363</li><li>cUL</li></ul>
Package Contents : <ul> <li>Power Strip 120V AC</li> <li>Mounting hardware</li> <li>Instruction manual</li> </ul>
