Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Management Card Options, USB, DB9 Serial
SMART750RM1U|TC-SMART750R
Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Management Card Options, USB, DB9 Serial
SMART750RM1U|TC-SMART750R
Tripp Lite by Eaton
Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Management Card Options, USB, DB9 Serial
SMART750RM1UÂ |Â TC-SMART750R
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

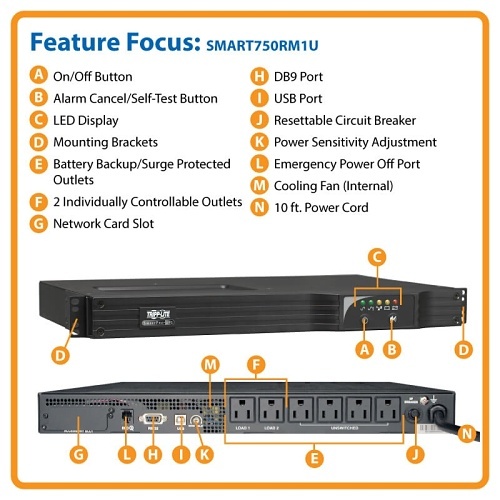

Main Features
- Tripp Lite SMART750RM1U .75kVA / 750VA / 600 watt line interactive UPS
- 1U rack/vertical compatible form factor
- Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support
- NEMA 5-15P input; 6 5-15R output receptacles
- Installed depth of only 16.75 in. / 42.5cm
- Sine wave output in both AC and battery backup modes
- Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
- Full load efficiency rating of 98% saves energy and ensures cool operating temperatures
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software
General Information
Name: Tripp Lite SMART750RM1U SmartPro 120V 750VA 600W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Management Card Options, USB, DB9 Serial
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332118813
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SMART750R Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SMART750RM1U Packaged Quantity 1 Product Line SmartPro Product Model SMART750RM1U Product Name SmartPro 750RM1U UPS Product Type Line-interactive UPS Weight (Approximate) (g) 13607.771 Â
-
Backup/Run Time (Full Load) 4.90 Minute Backup/Run Time (Full Load) (Second) 294 Backup/Run Time (Half Load) 13.20 Minute Backup/Run Time (Half Load) (Second) 792 Hot Swappable Yes Load Capacity (VA) 750 VA Output Voltage 120V AC Output Voltage (V AC) 120 Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Â
-
Battery Chemistry Lead Acid Battery Life 6 Year Battery Life (Second) 189341556 Typical Battery Recharge Time 4-Hour Typical Battery Recharge Time (Second) 14400 Â
-
Output Voltage (V) 120 Â
-
Status Indicators 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED. Â
-
Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Â
-
Alarm Low Battery, On Battery, Overload Network Management SNMP Manageable Â
-
Depth 16.8" Depth (mm) 425.45 Form Factor Rack Mount, Vertical Height 1.8" Height (mm) 44.45 Rack Height 1U Weight (Approximate) 30 lb Width 17.5" Width (mm) 444.5 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Plug/Connector Type NEMA 5-15P Waveform Type Sine Wave Â
-
Load Capacity (VA) (W) 750VA|600W Load Capacity (W) 750.000 Â
-
Limited Warranty 2-year Â
-
Package Contents - SMART750RM1U UPS System
- Mounting hardware
- Cabling for USB & DB9 monitoring and EPO switching
- PowerAlert unattended shutdown and UPS/Power monitoring software
- Warranty information and instruction manual
TAA Compliant Yes Â
