Tripp Lite SR42UBDP SmartRack Deep Rack Enclosure Cabinet with Doors and Side Panels, 45" (114cm), 3000lb (1360.8kg), 42U

Brand: Tripp Lite by Eaton
ADI #:TC-SR42UBDP Model #: SR42UBDP  Name: Tripp Lite SR42UBDP SmartRack Deep Rack Enclosure Cabinet with Doors and Side Panels, 45" (114cm), 3000lb (1360.8kg), 42U
  • 48" (1200 mm) depth for mounting extra-deep equipment
  • Standard 24" (600 mm)Width for optimizing floor space
  • Ships fully assembled

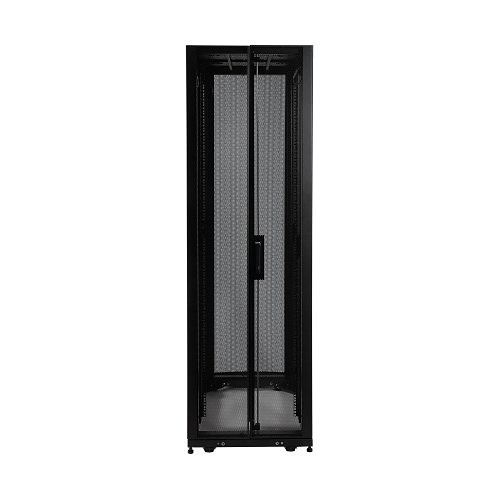

Image of TC-SR42UBDP

Product Overview

A DEEP version of our standard 42U SmartRack. The SR42UBCL enclosure is 1200mm deep (47.25") compared to the standard 1070mm deep (42"). This extra depth allows for high density equipment installations. It allows extra space for moving the cable management back as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. All features from the standard SmartRacks carry over to these wide racks to allow cross usage of accessories. Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance.

General Information

Name : Tripp Lite SR42UBDP SmartRack Deep Rack Enclosure Cabinet with Doors and Side Panels, 45" (114cm), 3000lb (1360.8kg), 42U , Tripp Lite by Eaton
Category : Rack Cabinets & Frames
UPC Code : 037332154477
Country of Origin : China. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : TC-SR42UBDP
Brand Name : Tripp Lite by Eaton
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SR42UBDP
Product Line : SmartRack
Product Model : SR42UBDP
Product Name : SR42UBDP Rack Enclosure Server Cabinet DEEP 42U
Product Type : Rack Cabinet
Weight (Approximate) (g) : 142881.597

Physical Characteristics

Depth : 47.3"
Depth (mm) : 1200.15
Dynamic/Rolling Weight Capacity : 2250 lb
Dynamic/Rolling Weight Capacity (g) : 1020582.833
Height : 78.5"
Height (mm) : 1993.9
Maximum Weight Capacity (g) : 142881.597
Rack Height : 42U
Static/Stationary Weight Capacity : 3000 lb
Static/Stationary Weight Capacity (g) : 1360777.11
Weight (Approximate) : 315 lb
Width : 24"
Width (mm) : 609.6

Warranty

Limited Warranty : 5 Year

Miscellaneous

Environmental Certification : RoHS
Environmentally Friendly : Yes
Features : UL 60950-1
Package Contents : <ul><li>SR42UBDP Rack Enclosure Server Cabinet DEEP 42U</li><li>Doors</li><li>Side Panels</li></ul>
