Eaton Tripp Lite SRW9U SmartRack Low-Profile Switch-Depth Wall Mount Mini Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 9U
Eaton Tripp Lite SRW9U SmartRack Low-Profile Switch-Depth Wall Mount Mini Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 9U
- 9U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
- 9U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
Sign In for Dealer Pricing
Become an ADI Customer- 9U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish

Eaton Tripp Lite SRW9U SmartRack Low-Profile Switch-Depth Wall Mount Mini Rack Enclosure, 16.5" (42cm), 200lb (90.7kg), 9U
SRW9U | TC-SRW9U
Please sign in to view pricing and availability and to add to cart.
Product Overview
The SRW9U SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing. The SRW9U comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
Main Features
- 9U low-profile wall-mount rack enclosure
- Accommodates 19 in. rack equipment
- Heavy-duty steel with black powder-coated finish
- 200 lb maximum stationary load capacity

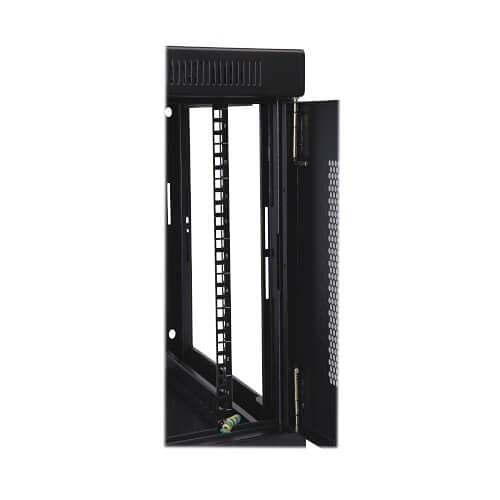

- Reversible front door and removable side panels
- Quick release for easy equipment access
- Vented design for optimal airflow
- Fully assembled for quick deployment
- Includes hardware for wall-mounting
- PCI DSS Compliance for secure data handling
General Information
Specifications
-
ADI Part Number TC-SRW9U Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number SRW9U Product Line SmartRack Product Model SRW9U Product Name SmartRack SRW9U Enclosure Rack Cabinet Product Type Rack Cabinet Weight 35 lb
-
Color Black Depth 17.8" Form Factor Wall Mount Height 19.9" Maximum Weight Capacity 200 lb Rack Height 9U Rack Width 19" Width 23.6"
-
Limited Warranty 5-Year
-
Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features UL 60950-1 Package Contents - SRW9U 9U Server Rack
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- Removable mounting plate
- (3) Mounting plate screws
- (2) Keys
- Owner's manual
