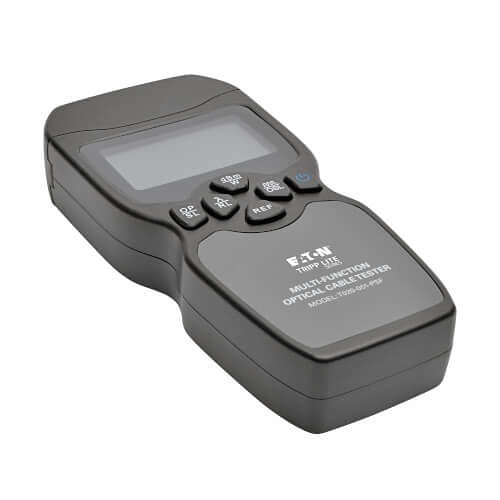

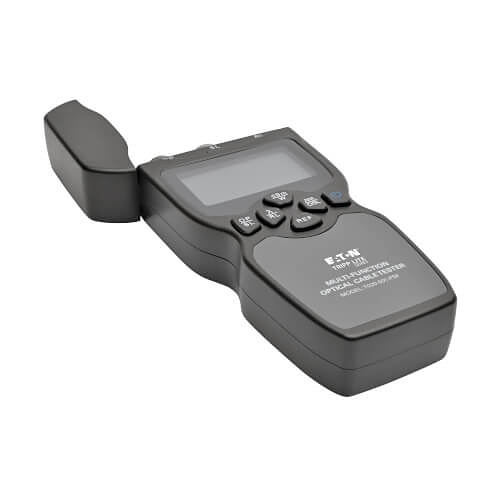

Tripp Lite T020-001-PSF Multi-Function Optical Fiber Cable Tester with Power Meter, Light Source and Visual Fault Locator
Brand: Tripp Lite by Eaton
ADI #:TC-T020001PS
Model #: T020-001-PSF
Name: Tripp Lite T020-001-PSF Multi-Function Optical Fiber Cable Tester with Power Meter, Light Source and Visual Fault Locator

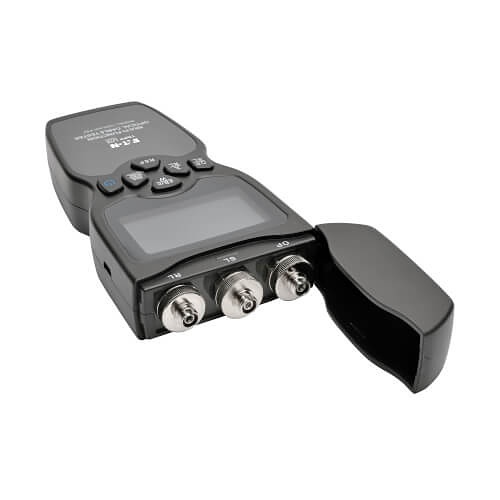

- FC connectors with optional SC, ST and LC adapters available
- Light source supports 1310 and 1550 nm wavelengths
- Power meter supports 850, 1300, 1310, 1490, 1550 and 1625 nm
Product Overview
The all-in-one T020-001-PSF Multi-Function Optical Fiber Cable Tester is an essential tool for cable installers or anyone working in telecom or LAN environments. The combination power meter/light source/visual fault locator allows you to test fiber optic cables for breaks, insertion loss and optical power loss. It features FC connectors with optional SC, ST and LC adapters available.
The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.
Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case.
The power meter supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm and 1625 nm wavelengths, while the light source supports 1310 nm and 1550 nm wavelengths. The visual fault locator features multiple frequency settings for continuous and flashing modes. The easy-to-read LCD interface displays power loss measurement data, wavelength, frequency, battery capacity and battery charge status.
Three AA batteries are included, and the auto-off function preserves battery power. If you're using rechargeable AA batteries, the USB Micro-B port charges them via connection to a USB wall charger or a computer's USB port. When not in use, the T020-001-PSF can be stored in its handy carrying case.
General Information
Name : Tripp Lite T020-001-PSF Multi-Function Optical Fiber Cable Tester with Power Meter, Light Source and Visual Fault Locator , Tripp Lite by EatonCategory : Fiber Optic Testers
UPC Code : 037332190345
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-T020001PS
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : T020-001-PSF
Product Model : T020-001-PSF
Product Name : T020-001-PSF Multi-Function Optical Fiber Cable Tester
Product Type : Testing Device
Technical Information
Device Function : Cable Fault Testing, Cable Signal Testing, Fiber Optic Cable Testing, Frequency Measurement, Insertion Loss Measurement, LAN Cable Testing, Network Testing, Optical Power Loss, Optical Power Testing, Power Level Testing, Power Monitoring, Visual Fault Locator
Media Type Supported : Coaxial, Optical Fiber, Twisted Pair
Battery Information
Battery Rechargeable : Yes
Battery Size Supported : AA
Number of Batteries Supported : 3
Interfaces/Ports
Audio Line Out : No
DVI : No
HDMI : No
Network (RJ-45) : No
Serial Port : No
Serial V.35 Interface : No
USB : Yes
VGA : No
Power Description
PoE (RJ-45) Port : No
Remote Control
Battery Included : Yes
Warranty
Limited Warranty : 2 Year
Miscellaneous
Country of Origin : China
Environmental Certification : RoHS
Environmentally Friendly : Yes

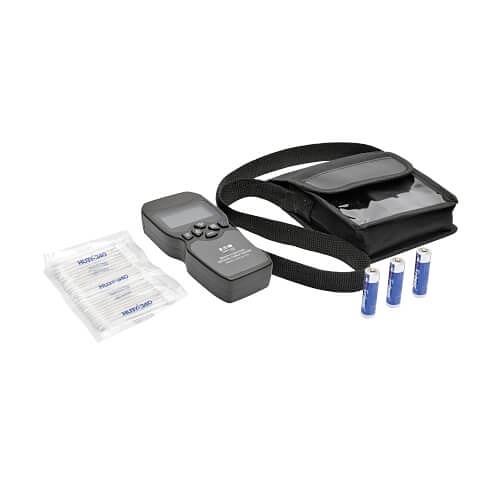

Package Contents : <ul> <li>T020-001-PSF Multi-Function Optical Fiber Cable Tester</li> <li>3 x AA Batteries</li> <li>Cleaning Swabs</li> <li>Carrying Case</li> <li>Owner's Manual</li> </ul>
