Eaton Tripp Lite U439-002-CG2 USB-C to Dual SATA Quick Dock, USB 3.1 Gen (10 Gbps), 2.5/3.5" HDD/SDD, Thunderbolt 3
Eaton Tripp Lite U439-002-CG2 USB-C to Dual SATA Quick Dock, USB 3.1 Gen (10 Gbps), 2.5/3.5" HDD/SDD, Thunderbolt 3
- Connects 2 SATA drives via USB-C or Thunderbolt 3
- Plug-and-play with USB 3.1 Gen 2 Cable included
- Supports 2.5" and 3.5" SATA I, II, III HDDs and SSDs
- Connects 2 SATA drives via USB-C or Thunderbolt 3
- Plug-and-play with USB 3.1 Gen 2 Cable included
- Supports 2.5" and 3.5" SATA I, II, III HDDs and SSDs
Sign In for Dealer Pricing
Become an ADI Customer- Connects 2 SATA drives via USB-C or Thunderbolt 3
- Plug-and-play with USB 3.1 Gen 2 Cable included
- Supports 2.5" and 3.5" SATA I, II, III HDDs and SSDs

Eaton Tripp Lite U439-002-CG2 USB-C to Dual SATA Quick Dock, USB 3.1 Gen (10 Gbps), 2.5/3.5" HDD/SDD, Thunderbolt 3
U439-002-CG2 | TC-U439002CG
Please sign in to view pricing and availability and to add to cart.
Product Overview
USB-C to SATA Adapter Connects 2 SATA Drives to Your Device's USB-C or Thunderbolt 3 Port

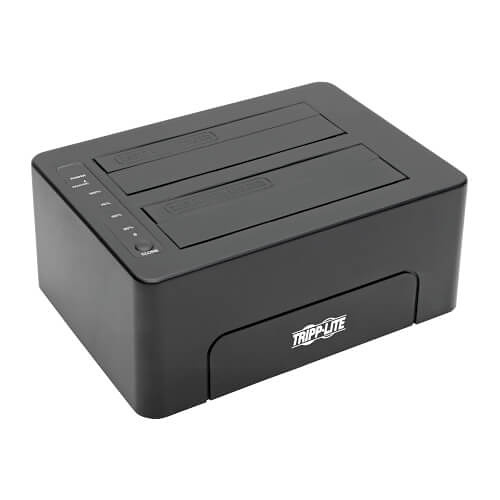

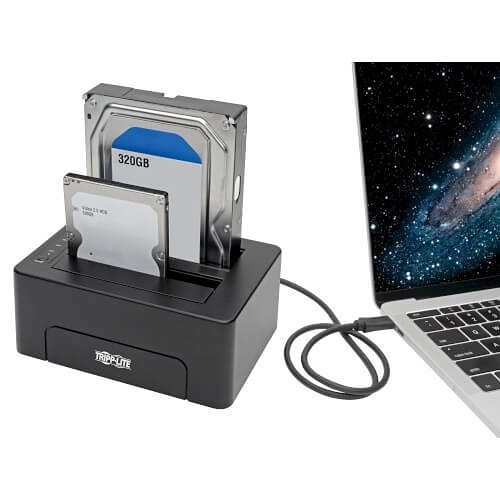

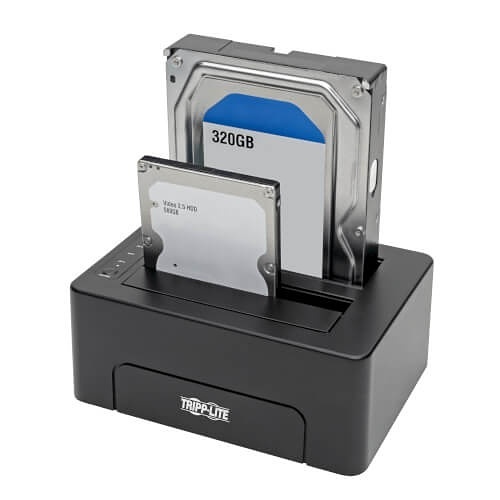

This dual-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device's USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert up to two 2.5- or 3.5-inch SATA drives into the top slots, and activate the on/off switch. LEDs indicate the unit is receiving power and the SATA drives are ready to use.
One-Touch Cloning Allows Easy Drive Duplication
You can duplicate the contents of one SATA drive onto a second drive without connecting to a host computer. Just insert the SATA master drive into the unit's Master slot, and insert the SATA replica drive into the Replica slot. Press the Clone button. A progress bar illuminates to indicate cloning progress.
Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers
This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.
Works with Most SATA Drives
The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available). It also works with all major operating systems, including Windows, Mac and Linux.
Main Features
- Connects 2 SATA drives via USB-C or Thunderbolt 3
- Plug-and-play with USB 3.1 Gen 2 Cable included
- Supports 2.5" and 3.5" SATA I, II, III HDDs and SSDs
- One-touch cloning without a host computer
- Ultra-fast data transfer up to 10 Gbps
- Backward compatible with USB 3.0 and 2.0
- Reads 70% faster, writes 40% faster with UASP
- Compatible with Windows, Mac, and Linux
- Supports drives up to 16TB
General Information
Specifications
-
ADI Part Number TC-U439002CG Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number U439-002-CG2 Packaged Quantity 1 Product Line Quick Dock Product Model U439-002-CG2 Product Name U439-002-CG2 USB 3.1 Gen 2 USB-C to SATA Hard-Drive Quick Dock Product Type Drive Dock
-
Host Interface USB 3.1 Type C
-
Number of Total Expansion Bays 2
-
Application/Usage Commercial, Residential Color Black Depth 2.4" Form Factor External Height 4.4" Width 6"
-
Number of Hard Drives Supported 2 Number of Solid State Drive Supported 2
-
Limited Warranty 3-Year
-
Country of Origin CN Environmental Certification REACH, RoHS Environmentally Friendly Yes Package Contents - U439-002-CG2 USB 3.1 Gen 2 USB-C to SATA Hard-Drive Quick Dock
- External power supply (Input: 100–240V, 50/60 Hz, 1.5A; Output: 12V 3A)
- USB 3.1 Gen 2 (10 Gbps) USB-C cable (M/M), 3 ft.
- Owner’s manual
