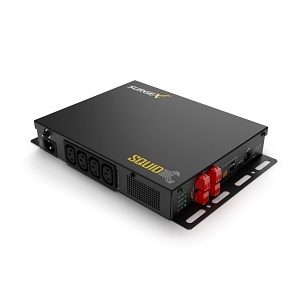

Image of U7-SXDC82412

SurgeX SX-DC-8-24-120 Surge Protector and Power Management System, 24V DC

SX-DC-8-24-120 | U7-SXDC82412

Sign In for Dealer Pricing

Become an ADI Customer
image of u7-sxdc82412
SurgeX

SurgeX SX-DC-8-24-120 Surge Protector and Power Management System, 24V DC

SX-DC-8-24-120 | U7-SXDC82412

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SurgeX SX-DC-8-24-120 shall be a universally mountable unit in a magnetic shielding steel enclosure. It shall operate at 120 or 240 volts AC and have a detachable line cord. There shall be 4 grounded AC receptacles on the input face, with all 4 individually switched. There shall be 2 individually switched DC output banks with 2 detachable connectors per bank. There shall be an unswitched 5 volts DC output on a detachable connector, as well as two USB A ports for power. There shall also be a USB OTG port for out of band control and configuration. Overall dimensions shall be 1.75" D x 8.25" W x 10" L. Weight shall be no more than 5.5 pounds. The unit shall have remote turn-on capabilities enabled by wired Ethernet. Remote turn-on, turn-off, and reboot shall be activated by software. It shall have remote control, sequencing, scheduling, measurement, AutoPing, and adjustable trigger functions, and shall support wired Ethernet HTTP, HTTPS, SNMPv1, SNMPv3, NTP, mDNS, 802.1x, and LDAP protocols. The unit shall measure voltage, current, power, frequency, energy, and temperature, and shall record events and measurements in its internal memory. The SX-DC-8-XXXX shall have a load rating of 15 amps at 120 volts, a load rating of 10 amps at 240 volts, a self-test circuit with software enabled indicator, and provide EMI/RFI filtering, and catastrophic over/under-voltage shutdown. It shall withstand surge pulse voltages up to 6000 volts.

Main Features

  • Universal 120V-240V AC input with IEC connectors
  • 4 controlled and monitored AC receptacles
  • 3 DC banks, 2 controllable
  • Measures electrical parameters, including Voltage, Current, Power, Frequency, Power Factor, Crest Factor
  • Time stamped power quality events
  • Wired Ethernet for Web server (HTTP/HTTPS), 802.1x authentication
  • TLS, SSL, SNMP V3, single sign-on
  • 2, 5V USB ports for charging
  • Internal storage of 30 days' worth of Max/Min/Avg electrical parameters
  • Compact size fits along, behind, or near equipment

General Information

Name: SurgeX SX-DC-8-24-120 Surge Protector and Power Management System, 24V DC
Category: SurgeX, Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 850011064245
Country of Origin: United States. Country of origin is subject to change.
