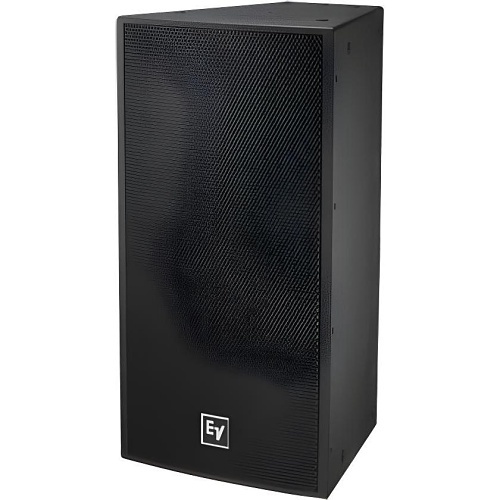

Bosch EVF-1122D/99-BLK 12" Premium Arrayable Point-Source Loudspeaker, Black
EVF-1122D/99-BLK|UV-1122D99B
Bosch EVF-1122D/99-BLK 12" Premium Arrayable Point-Source Loudspeaker, Black
EVF-1122D/99-BLK|UV-1122D99B
Key Features
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Key Features
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
.jpg)
Key Features
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
Electro-Voice by Bosch
Bosch EVF-1122D/99-BLK 12" Premium Arrayable Point-Source Loudspeaker, Black
EVF-1122D/99-BLK | UV-1122D99B
Please sign in to view pricing and availability and to add to cart.
Accessories
Non Plenum Audio Cables
ADI # RN-5002501
MODEL # RN-5002501
RN-5002501|RN-5002501
Sign In for Dealer Pricing
Non Plenum Audio Cables
ADI # RN-5001503
MODEL # RN-5001503
RN-5001503|RN-5001503
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
ADI # 8P-EADN12D10
MODEL # 8P-EADN12D10
8P-EADN12D10|8P-EADN12D10
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Key Features:
The Electro-Voice EVF-1122D/99 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.
The EVF-1122D/99 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ 90° x 90° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The EVF-1122D/99's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.
- DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver
- DVX3121A 12" (305 mm) LF transducer with fully symmetric drive
- Advanced fourth-order crossover network with HF protection
- Coverage pattern: 90° x 90° Constant Directivity™ 12" rotatable waveguide
- 97 dB sensitivity, 131 dB maximum SPL
- System rating: 600 W continuous, 2400 W peak
- Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak)
- (22) M10 threaded suspension points
- PI version available with gland nut and stainless-steel grille
The Electro-Voice EVF-1122D/99 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.
The EVF-1122D/99 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ 90° x 90° waveguide. The DVX3121A 12" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.
The EVF-1122D/99's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.
Main Features
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 49 Hz-21 kHz
- Knock yourself out with 600 W RMS power
- 12" woofer driver size allows better stereo imaging with maximum sound feasibility
- 3" tweeter driver size provides crispier, well-detailed sound with maximum productivity
- Offers great productivity with 21 kHz maximum frequency response
- 131 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- 30.3" height for productive long-distance communication with maximum usability
General Information
Name: Bosch EVF-1122D/99-BLK 12" Premium Arrayable Point-Source Loudspeaker, Black
Category: Electro-Voice by Bosch, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number UV-1122D99B Brand Name Electro-Voice by Bosch Manufacturer The Bosch Group Manufacturer Part Number EVF-1122D/99-BLK Product Line Premium Product Name EVF-1122D/99 Premium 12" 2-Way Full-Range Loudspeaker Product Series EVF Product Type Speaker Weight 65.48 lb
-
Crossover Type 2-way Impedance 8 ohms Sensitivity 131dB
-
Maximum Frequency Response 21 kHz Minimum Frequency Response 49 Hz RMS Output Power 600W
-
Sound Emission 131 dB, 97 dB
-
Color Black Depth 16.27" Height 30.3" Material Titanium Size 12" Width 16"
-
Diameter 12"
