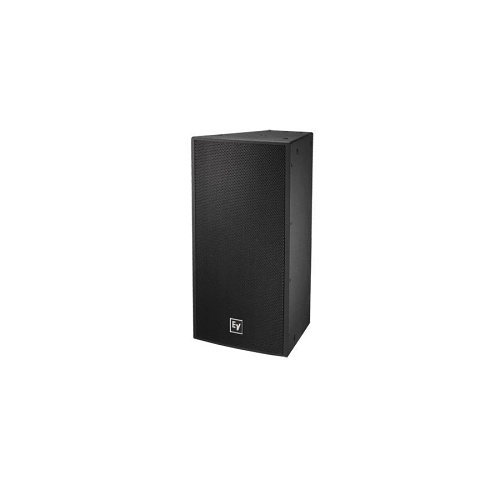

Image of UV-EVF1122S9
Shop all Electro-Voice by Bosch

Electro-Voice EVF-1122S/96-BLK Arrayable Point-Source 12" Loudspeaker, 500W, Black

EVF-1122S/96-BLK|UV-EVF1122S9
Shop all Electro-Voice by Bosch

Electro-Voice EVF-1122S/96-BLK Arrayable Point-Source 12" Loudspeaker, 500W, Black

EVF-1122S/96-BLK|UV-EVF1122S9
Key Features
  • 500W RMS Power for high-quality sound
  • Weatherized fiberglass finish for outdoor use
  • ND2B 2" titanium compression driver
Key Features
  • 500W RMS Power for high-quality sound
  • Weatherized fiberglass finish for outdoor use
  • ND2B 2" titanium compression driver

Sign In for Dealer Pricing

Become an ADI Customer
HID
Key Features
  • 500W RMS Power for high-quality sound
  • Weatherized fiberglass finish for outdoor use
  • ND2B 2" titanium compression driver
Electro-Voice by Bosch

Electro-Voice EVF-1122S/96-BLK Arrayable Point-Source 12" Loudspeaker, 500W, Black

EVF-1122S/96-BLK | UV-EVF1122S9

Please sign in to view pricing and availability and to add to cart.

Accessories

Battery Packs
Image of WT-OVRC1500U
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WattBox
WattBox WB-OVRC-UPS-1500-1 UPS Battery Pack for IP Power Conditioners, 1500VA
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
Image of 8P-EADN12D10
ADI # 8P-EADN12D10
MODEL # 8P-EADN12D10
Episode
Episode EA-DYN-12D-100 Dynamic Series Class-D Amplifier, 12", 100W x 12 Channel
8P-EADN12D10|8P-EADN12D10
Sign In for Dealer Pricing
Pro Volume Controllers
Image of 8P-VC100WHLA
ADI # 8P-VC100WHLA
MODEL # 8P-VC100WHLA
Episode
Episode EVC-100S-WHLA Sliding Volume Control, 100W (Each)
8P-VC100WHLA|8P-VC100WHLA
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

Key Features:

  • Fully Weatherized Fiberglass Finish with Gland Nut and Stainless Steel Grille
  • ND2B 2" (51mm) Diaphragm, 1.4" (36mm) Exit Pure Titanium Compression Driver
  • SMX2121 12" (305mm) LF Transducer with Fully Symmetric Drive
  • Advanced 4th Order Crossover Network with HF Protection
  • Coverage Pattern: 90° x 60° Constant Directivity™ 12" Rotatable Waveguide
  • 98 dB Sensitivity, 131 dB Maximum SPL
  • System Rating: 500W Continuous, (2000W Peak)
  • Active Rating: LF400W/HF40W Continuous (1600W/160W Peak)
  • (22) M10 Threaded Suspension Points
General Description:

The Electro-Voice® EVF-1122S/96-FG is a fully-weatherized, fiberglass-coated, high power, 2-way loudspeaker system that can be used in a variety of applications where high quality sound reinforcement is required in a compact, lightweight package.

The EVF-1122S/96-FG utilizes the ND2B, a high output 2" titanium compression driver, coupled to a Constant Directivity™ 90° x 60° waveguide. The SMX2121 12" woofer used FEA optimization for motor, suspension, and electrical design for very low distortion, high efficiency, and maximum intelligibility at high SPL levels. The crossover uses steep 24 dB/octave slopes with equalization for very smooth response in vocal range, linear off-axis response, and a protection circuit for long term reliability.

The EVF-1122S/96-FG features make it ideal for many fixed install applications, including applications with full exposure to outdoor elements. The trapezoidal enclosure is constructed out of weather resistant birch, and coated with fiberglass for maximum protection from extreme outdoor elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series, with 7 horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, it gives you the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides phoenix style connectors (included in all standard models) and gland nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100 Volt transformer kit simply mounts to the input panel for use in distributed systems. All these features give you the flexibility to do a large range of venues in extreme environments with fewer items in inventory and quickly support your customer's requirements.

Main Features

  • 500W RMS Power for high-quality sound
  • Weatherized fiberglass finish for outdoor use
  • ND2B 2" titanium compression driver
  • SMX2121 12" LF transducer for low distortion
  • Advanced 4th order crossover with HF protection
  • 90° x 60° constant directivity waveguide
  • 98 dB sensitivity, 131 dB max SPL
  • 22 M10 threaded suspension points
  • Trapezoidal weather-resistant birch enclosure
  • Phoenix style connectors for easy installation

General Information

Name: Electro-Voice EVF-1122S/96-BLK Arrayable Point-Source 12" Loudspeaker, 500W, Black
Category: Electro-Voice by Bosch, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
