Product Overview

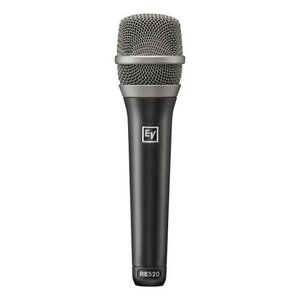

The RE520 is a premium-grade, high-performance, condenser supercardioid vocal microphone. Designed to reveal the exceptional detail and vivid clarity synonymous with condenser elements, it elegantly delivers the lyrical finesse required for expressive vocal performances, while controlling off-axis sound from near-by sources.
The sonic signature is detailed, full and vivid, with a warm and clear low end, natural and present midrange, and an open, crisp and detailed high end. The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor position is at either 225° or 125° offaxis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound. The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.
The high-pass filter has two positions (see drawing). The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz.
The internal shock mount isolates the microphone element from vibration and guards against handling noise.
The sonic signature is detailed, full and vivid, with a warm and clear low end, natural and present midrange, and an open, crisp and detailed high end. The supercardioid pattern provides excellent acoustic isolation. Maximum feedback rejection occurs when a stage monitor position is at either 225° or 125° offaxis to the element. This pattern also allows for a cleaner mix due to its rejection of off-axis sound. The multi-stage pop filter consists of two layers of dense foam separated by air, which attenuates wind velocity caused by breath and windblasts.
The high-pass filter has two positions (see drawing). The flat position delivers the full frequency band pass of the capsule. The high-pass position attenuates frequencies below 150 Hz.
The internal shock mount isolates the microphone element from vibration and guards against handling noise.
Specifications
ADI Part Number UV-RE520 Brand Name Bosch Manufacturer The Bosch Group Manufacturer Part Number RE520 Packaged Quantity 1 Product Model RE520 Product Name RE520 Condenser Supercardioid Vocal Microphone Product Type Microphone
Application/Usage Vocals Connectivity Technology Wired Host Interface 3-Pin XLR Impedance 200 ohms Material Cast Zinc, Steel Polar Pattern Super-cardioid
Maximum Frequency Response 20 kHz Minimum Frequency Response 40Hz
Microphone Technology Condenser Microphone Type Handheld, Shock Mount
Color Black Weight 11.70oz
Length 7.6"
Package Contents - RE520 Condenser Supercardioid Vocal Microphone
- 1 x Gig bag
- 1 x Stand Clip
- 1 x Engineering Datasheet
- 1 x Warranty and Product Documentation Information Card
