Superior Essex 6T-272-3A CAT6+ 23/4 CMR Cable, F/UTP, 1000' (304.8m) Plywood Reel, Gray
6T-272-3A
|UY-6T2723A
Shop All Superior Essex
Superior Essex 6T-272-3A CAT6+ 23/4 CMR Cable, F/UTP, 1000' (304.8m) Plywood Reel, Gray
6T-272-3A | UY-6T2723A
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

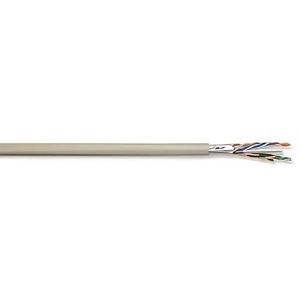

CAT6 F/UTP (ScTP) cable, with guaranteed performance out to 500 MHz, exceeds ANSI/TIA-568-C.2 for CAT6 cables. The cable is UL Verified CAT6 and has a typical Alien Crosstalk margin of 18 dB. The cable can be used for 10GBASE-T applications fo r up to 55m per ANSI/TIA/EIA-TSB-155. The cable consists of 4-balanced 23AWG copper pairs around a flame-retardant cross-web. The core is wrapped with a Mylar-backed aluminum foil. A drain wire is applied longitudinally against the tape. The cable is then protected with a flexible riser or plenum-rated PVC jacket. CAT6 F/UTP (ScTP) is certified for HD A/V applications using HDBaseT Class A and B protocol.
Main Features
- Overall shielded core
- Guaranteed performance to 500MHz
- Exceeds ANSI/TIA-568-C.2 specification for CAT6 cable performance
- UL Verified CAT6
- Riser and plenum rated designs
- CableID alpha numeric code printed every 2'
- QuickCount marking system in feet and meters
- ColorTip circuit identification system
- Protects against EMI/RFI
- 18 dB typical margin Alie
General Information
Name: Superior Essex 6T-272-3A CAT6+ 23/4 CMR Cable, F/UTP, 1000' (304.8m) Plywood Reel, Gray
Category: Superior Essex, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number UY-6T2723A Brand Name Superior Essex Manufacturer Part Number 6T-272-3A Package Type Reel/Spool
Cable Rating Riser
Color Gray
