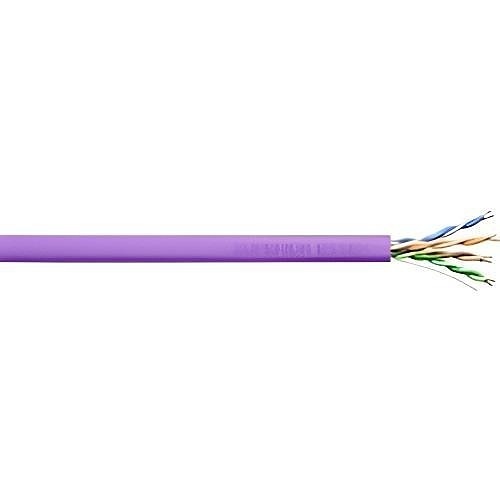

Superior Essex PW52-H46-78 22/4 UTP-CMP POE Powerwise Cable, Purple, 1000'
PW52-H46-78
|UY-PW52H4678
Shop all Superior Essex
Superior Essex PW52-H46-78 22/4 UTP-CMP POE Powerwise Cable, Purple, 1000'
PW52-H46-78 | UY-PW52H4678
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
PowerWise 1G 4PPoE cables provide the best performance and overall value for 4 Pair Power over Ethernet (4PPoE) applications requiring up to 100W of power and up to 1 Gigabit Ethernet performance.
Main Features
- UL Certified Environmental Product Declaration (EPD)
- Contributes toward 1 LEED credit under the Material and Resources credit (MRc)Health Product Declaration (HPD)
- Contributes toward 1 LEED credit under the MRc
- Tested to 350 MHz
- Assures ample banddth headroom
- 22AWG Copper conductors offer 97% power efficiency
- Higher cable density, smaller bend radius and lowers installation costs
- CableID alpha numeric code printed every 2'
- Easily identifies both ends of a cable run without the need tseparately label or tone the cable
- ColorTip circuit identification system
General Information
Name: Superior Essex PW52-H46-78 22/4 UTP-CMP POE Powerwise Cable, Purple, 1000'
Category: Superior Essex, Wire & Cable, Network Cables, Category 5e Network Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number UY-PW52H4678 Brand Name Superior Essex Manufacturer Part Number PW52-H46-78 Packaged Quantity 16 Product Name PW52-H46-78 PowerWise 1G 4PPoE cable Product Type Connector Cable
American Wire Gauge 22AWG Application/Usage 10BASE-T through 1000BASE-T Ethernet, ATM and token ring, HDBaseT Class A and B, Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4 Cable Rating Plenum Jacket Type CMP, CMR Number of Pairs 4 Solid or Stranded Solid
Color Purple Package Type Reel Weight 28lb
Environmental Certification REACH, RoHS, UL Environmentally Friendly Yes
