Araknis Networks AN-SFP-100-D-1 QSFP28 Transceiver Module, DAC Connector, 100Gbps, 1m
AN-SFP-100-D-1|V6-AN100D1
Araknis Networks AN-SFP-100-D-1 QSFP28 Transceiver Module, DAC Connector, 100Gbps, 1m
AN-SFP-100-D-1|V6-AN100D1
Key Features
- 100Gbps data transfer rate
- Compatible with Araknis AN-920 switches
- Available in 1m or 3m lengths
Key Features
- 100Gbps data transfer rate
- Compatible with Araknis AN-920 switches
- Available in 1m or 3m lengths
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 100Gbps data transfer rate
- Compatible with Araknis AN-920 switches
- Available in 1m or 3m lengths
Araknis Networks
Araknis Networks AN-SFP-100-D-1 QSFP28 Transceiver Module, DAC Connector, 100Gbps, 1m
AN-SFP-100-D-1 | V6-AN100D1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

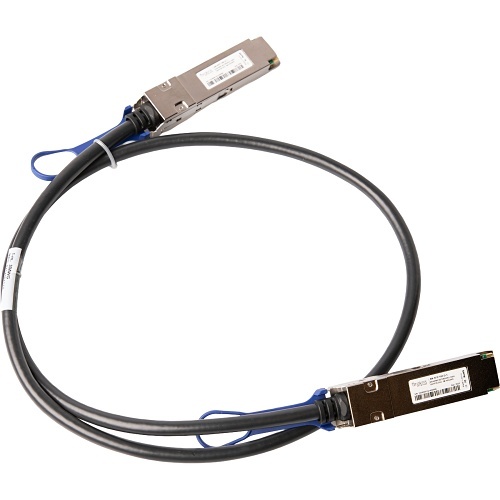

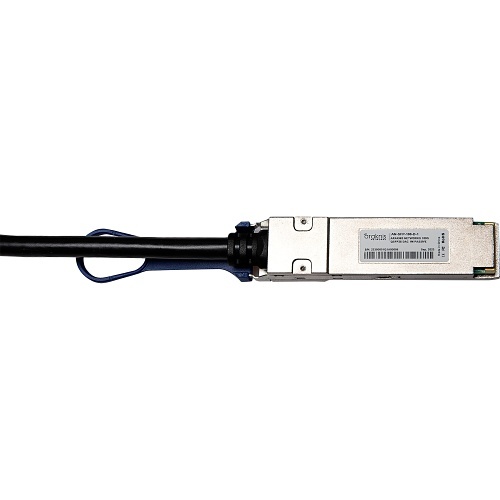

This Araknis Networks® QSFP28 Transceiver Module is optimized for use with the Araknis switches that feature a QSFP28 port. For example, AN-920 switches with an Araknis Network QSFP28 100Gbps Expansion Module (AN-SFP-100G-10). It is available in 1m or 3m options with Passive Copper DAC (Direct Attach Cable), and is designed for server racks that require high-speed data transfer capabilities over shorter distances. With pull-to-release latches on the connectors, swapping out ports becomes quick and easy when working with server racks.
Main Features
- 100Gbps data transfer rate
- Compatible with Araknis AN-920 switches
- Available in 1m or 3m lengths
- Passive Copper DAC for short distances
- Easy port swapping with pull-to-release latches
- Supports data speeds up to 100Gbps
- Simple and easy plug-and-play installation
- Hot swappable port changing
- Durable metallic enclosure
- 2-Year Limited Warranty
General Information
Name: Araknis Networks AN-SFP-100-D-1 QSFP28 Transceiver Module, DAC Connector, 100Gbps, 1m
Category: Araknis Networks, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, SFP Modules, SFP Modules, ADI Exclusive
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number V6-AN100D1 Brand Name Araknis Networks Manufacturer Part Number AN-SFP-100-D-1 Product Type Transceiver Module
American Wire Gauge 30AWG Cable Type Passive Copper
Operating Temperature (T-T) -4-185°F Storage Temperature (T-T) -40-185°F
Connector Type DAC
Data Transfer Rate 100 Gbps
Dimensions 39.37" x 0.51" x 0.72"
