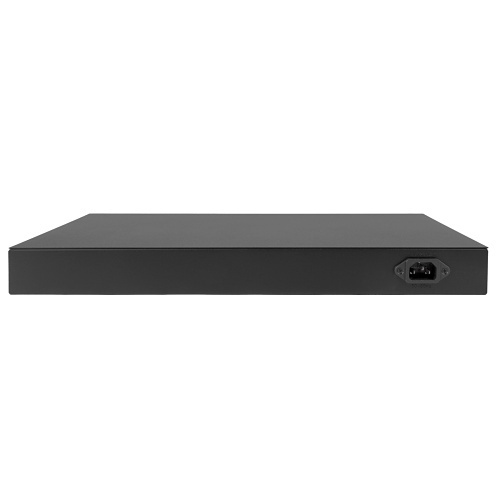

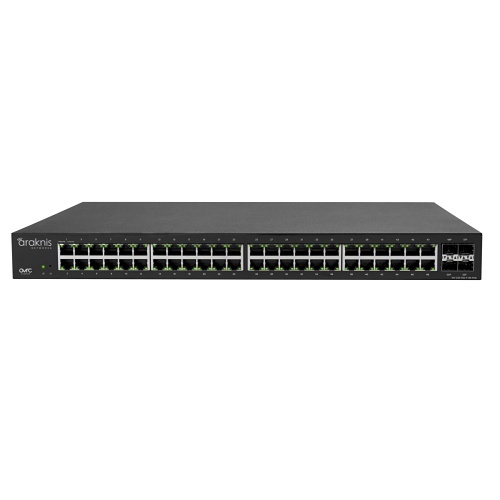

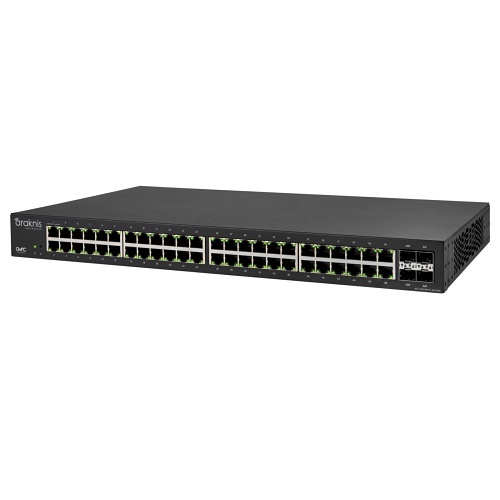

Araknis Networks AN-220-SW-F-48-POE 220 Series Layer 2 Managed Gigabit Switch with Partial PoE+ and Front Ports
AN-220-SW-F-48-POE
|V6-AN220SWF4
Shop All Araknis Networks
Araknis Networks AN-220-SW-F-48-POE 220 Series Layer 2 Managed Gigabit Switch with Partial PoE+ and Front Ports
AN-220-SW-F-48-POE | V6-AN220SWF4
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
For installs that require PoE on a budget, opt for the Araknis 220 series switch. With it, you get a sizable power budget and full PoE+ capability on all ports, up to 30W. 1 Gbps speed across all ports allows for powerful connectivity, while a user-friendly GUI and multiple mounting options ensure a quick and easy install. As with all Araknis switches, you have remote management capability via OvrC. When it comes to operation, this switch has it all, including plug-and-play capability, multiple mounting options, and a sleek, 1U design.
Main Features
- 48-Port Layer 2 Managed Gigabit Switch with front-facing ports
- Full PoE+ support on all ports, delivering up to 30W per port
- Dual dedicated SFP uplink ports for fiber or RJ45 uplink connections
- OvrC-enabled for cloud-based remote monitoring and management
- Layer 2 managed features including VLANs, Link Aggregation, STP, IGMP Snooping, and QoS
- User-friendly web interface with simplified VLAN and network configuration

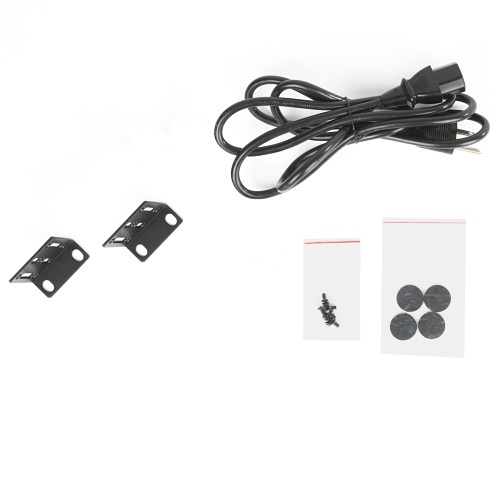

- Plug-and-play deployment with multiple mounting options and 1U rack design
General Information
Name: Araknis Networks AN-220-SW-F-48-POE 220 Series Layer 2 Managed Gigabit Switch with Partial PoE+ and Front Ports
Category: Araknis Networks, Data Comm & Networking, Hubs, Routers & Switches, Network Switches, ADI Exclusive
UPC Code: 842822063760
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number V6-AN220SWF4 Brand Name Araknis Networks Manufacturer Part Number AN-220-SW-F-48-POE Product Series 220 Product Type Network Switch
Network Switch Type Managed OvrC Enabled Yes Power Consumption 48W
Operating Humidity 10-90% Operating Temperature (T-T) 32-122°F
Number of Ports 48
Dimensions 17.32" x 1.73" x 16.22" Rack Depth 16" Rack Width 17"
Power over Ethernet (PoE) Yes
ADI Part Number Replaces V6-AN210SWF4 Model Number Replaces AN-210-SW-F-48-POE
Compatibility Control4
