Araknis Networks AN-SFP-10-F-20K Transceiver Module Compliant to SFP MSA and SFF-872 with duplex LC receptacle, up to 10Gbps, 4.5V, 12.4mi (20km)
AN-SFP-10-F-20K
|V6-ANSFP10F0
Araknis Networks AN-SFP-10-F-20K Transceiver Module Compliant to SFP MSA and SFF-872 with duplex LC receptacle, up to 10Gbps, 4.5V, 12.4mi (20km)
AN-SFP-10-F-20K | V6-ANSFP10F0
Please sign in to view pricing, availability, and to add to cart.
Product Overview

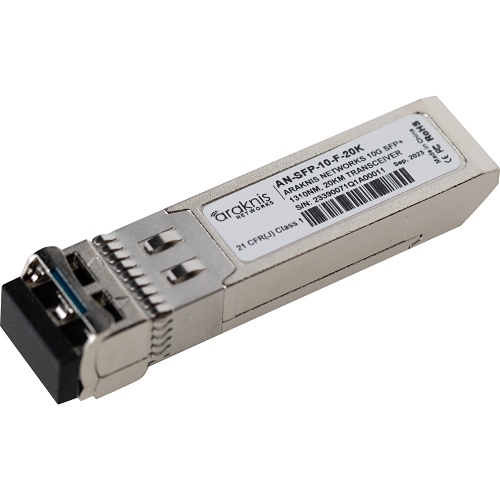

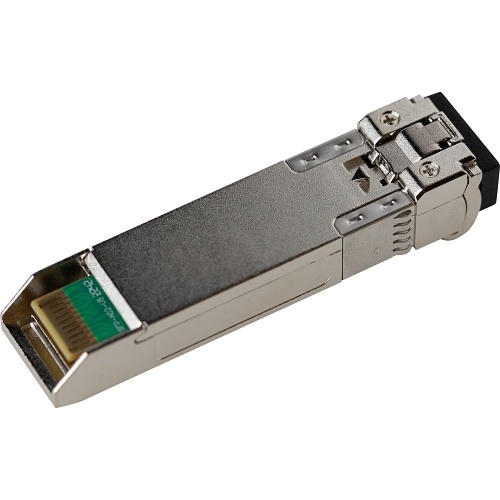

The Araknis SFP+ Transceiver Module is a high-speed data transfer accessory designed for use with Araknis Network switches featuring 10Gbps SFP+ ports. It supports data transmission at 10Gbps over distances up to 20 kilometers using 1310nm single-mode fiber optic cables with LC connectors. Compatible with 10GBase-LR and 10GBase-LW standards, the module is well suited for large commercial & residential projects requiring extended range connectivity. Installation is simple, with plug-and-play functionality and hot-swappable design, allowing insertion without powering down the switch. The durable metallic enclosure provides strength and heat control in demanding environments.
2-Year Limited Warranty: This Araknis product has a 2-Year Limited Warranty, subject to the terms and conditions of the Snap One Limited Hardware Warranty.
Main Features
- Supports 10Gbps data transfer speeds up to 20 kilometers
- 1310nm DFB Laser and PIN photodiode
- Supports 10GBase-LR and 10GBase-LW standards
- Simple plug-and-play installation without configuration
- Hot swappable for easy insertion without powering off
- Durable metallic enclosure for strength and heat control
- Designed for Araknis Network switches with SFP+ ports
- Compatible with single mode fiber optic cables with LC connectors
General Information
Specifications
ADI Part Number V6-ANSFP10F0 Brand Name Araknis Networks Manufacturer Part Number AN-SFP-10-F-20K Product Type Transceiver Module
Cable Type Fiber Optic Fiber Optic Mode Single-mode
Operating Temperature (T-T) -40-158°F Storage Temperature (T-T) -40-185°F
Connector Type LC
Data Transfer Rate 10Gbps Network Technology 10GBase-LR
Dimensions 2.23" x 0.48" x 0.57" Weight 0.15lb
Plug/Connector Type LC
