Key Features
- 1/2.8" CMOS Sensor for High-Quality Imaging
- Ultra-Low Light Performance
- Rolling Shutter for Smooth Motion Capture
Key Features
- 1/2.8" CMOS Sensor for High-Quality Imaging
- Ultra-Low Light Performance
- Rolling Shutter for Smooth Motion Capture
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 1/2.8" CMOS Sensor for High-Quality Imaging
- Ultra-Low Light Performance
- Rolling Shutter for Smooth Motion Capture
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

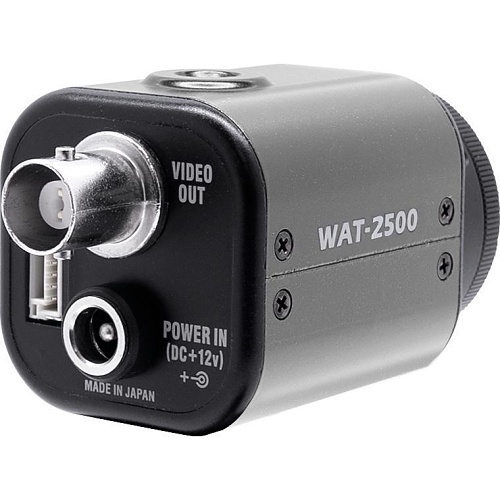

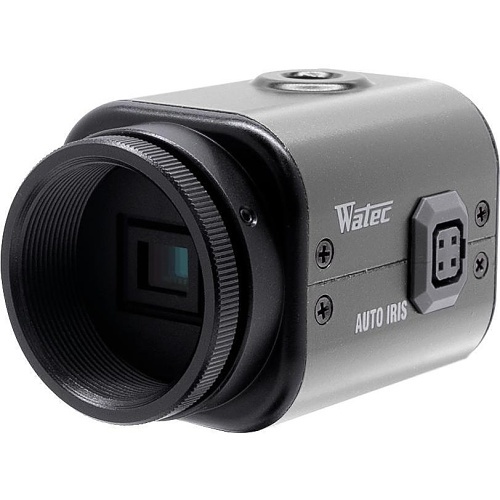

The WAT-2500 is our 1/2.8" rolling shutter color camera. It is a direct drop in replacement for the 250D series and 600CX.
Main Features
- 1/2.8" CMOS Sensor for High-Quality Imaging
- Ultra-Low Light Performance
- Rolling Shutter for Smooth Motion Capture
- Direct Replacement for 250D Series
- Compatible with 600CX Series
General Information
Name: Watec WAT-2500 NTSC Indoor Analog Box Camera
Category: Watec, Video Surveillance, Analog Cameras, Analog Covert Cameras
UPC Code:
Country of Origin: Japan. Country of origin is subject to change.
Specifications
-
ADI Part Number WA-T2500NTSC Brand Name Watec Manufacturer Part Number WAT-2500 NTSC Product Name WAT-2500 NTSC Surveillance/Network Cameras Product Type Camera Weight 0.17lb
-
Maximum Aperture f/1.2 Maximum Frame Rate 15 fps
-
Image Sensor Type CMOS
-
Maximum Video Resolution 1945 x 1097
-
Operating Humidity 0.95
-
Longest Shutter Speed 1/30 Second Minimum Illumination 0.0004 lux|0.0065 lux Shortest Shutter Speed 1/10000 Second
-
Input Voltage 12V DC
