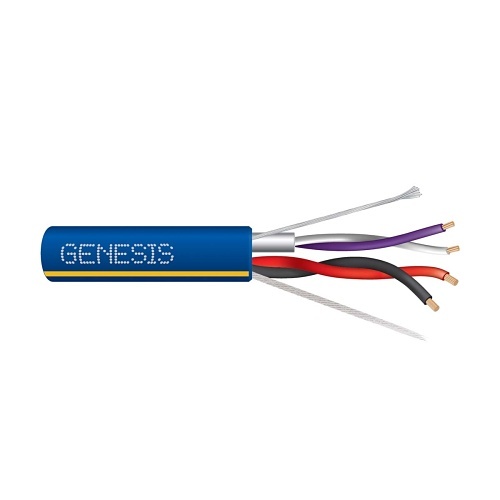

Genesis 1244506Y 22/1-Pair Shielded + 18/2 Stranded Lutron Cable, General Purpose, CM, 500' (152.4 m) Reel, Blue w/ Yellow Stripe
1244506Y|WG-1244506Y
Genesis 1244506Y 22/1-Pair Shielded + 18/2 Stranded Lutron Cable, General Purpose, CM, 500' (152.4 m) Reel, Blue w/ Yellow Stripe
1244506Y|WG-1244506Y
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over one pair
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over one pair
.jpg)
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over one pair
Genesis
Genesis 1244506Y 22/1-Pair Shielded + 18/2 Stranded Lutron Cable, General Purpose, CM, 500' (152.4 m) Reel, Blue w/ Yellow Stripe
1244506Y | WG-1244506Y
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Lutron Light & Shade Control Cables enable the superior reliability of wired home automation.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over one pair
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 60 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 1244506Y 22/1-Pair Shielded + 18/2 Stranded Lutron Cable, General Purpose, CM, 500' (152.4 m) Reel, Blue w/ Yellow Stripe
Category: Genesis, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code: 781410915619
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-1244506Y Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 1244506Y Packaged Quantity 1 Product Model 1244506Y Product Name 1244506Y Control Cable Product Type Lighting Control Cable
-
American Wire Gauge 18AWG, 22AWG Cable Rating General Purpose Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Intercom, Satellite Receiver, Video Device Jacket Material PVC Jacket Type General Purpose Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 500' Color Blue with Yellow Stripe Insulation Material PP Material Bare Copper Package Type Reel
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
