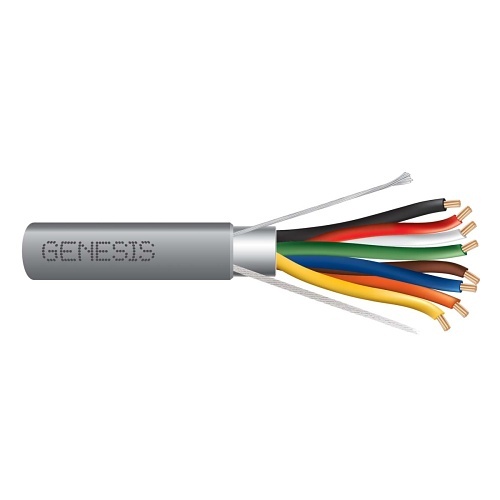

Genesis 22071109 22/8 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
22071109|WG-22071109
Genesis 22071109 22/8 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
22071109|WG-22071109
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
.jpg)
Key Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
Genesis
Genesis 22071109 22/8 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
22071109 | WG-22071109
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Shielded Multiconductor Cables offer a versatile solution for various applications. These shielded cables minimize electrical noise and interference to protect sensitive signals.
Main Features
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- Sunlight Resistant (UV) Rated
- REACH/RoHS Compliant
General Information
Name: Genesis 22071109 22/8 Stranded Shielded Cable, Riser, CMR, FT4, 1000' (304.8 m) Pull Box, Gray
Category: Genesis, Wire & Cable, Security & Access Control Cables, Riser Shielded Cables
UPC Code: 619172021128
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-22071109 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 22071109 Packaged Quantity 1 Product Model 22071109 Product Name 22071109 - 22 AWG 8C STR Shielded Riser, Gray, 1000 FT. Pull Box Product Type Access & Security Cable Weight 25.80 lb
-
American Wire Gauge 22AWG Cable Rating Riser Cable Type Multi-conductor, Multi-pair Conductor Count 4 Conductor Material Bare Copper Connector on First End Bare Wire Core/Cladding Diameter 22/8 Device Supported Audio Device, Security Device Impedance 59 ohms Jacket Material PVC Jacket Type FT4, Riser Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Stranded
-
TAA Compliant Yes
-
ADI Part Number Replaces WG-12071109 Model Number Replaces 12071109
-
Cable Length 1000' Color Gray Insulation Material PP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Environmentally Friendly Yes Features Stranded Indoor/Outdoor Indoor
