Genesis 31095012 22/12 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 500' (152.4m), Reel, Natural White

Brand: Genesis
ADI #:WG-31095012 Model #: 31095012  Name: Genesis 31095012 22/12 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 500' (152.4m), Reel, Natural White
  • Stranded bare copper conductors
  • Rated for plenum, riser, and general purpose indoor installation
  • 500 ft. (152.4 m) reel

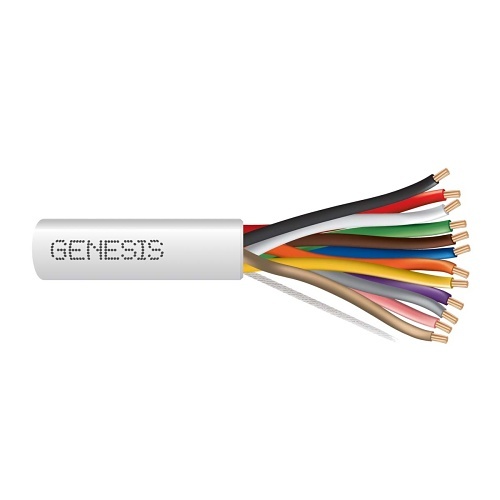

Genesis 31095012 Control Cable

Product Overview

This Genesis® cable features 12 stranded 22 AWG copper conductors and a plenum rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.

General Information

Name : Genesis 31095012 22/12 Stranded Plenum Cable, Unshielded, CL3P, FPLP, CMP, FT6, 500' (152.4m), Reel, Natural White , Genesis
Category : Stranded Plenum Unshielded Cables
UPC Code : 619172013376
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : WG-31095012
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 31095012
Product Model : 31095012
Product Name : 31095012 Control Cable
Product Type : Control Cable

Technical Information

American Wire Gauge : 22AWG
Cable Listing : CL3P, CMP, FPLP, FT6
Cable Type : Stranded Plenum Unshielded Cables
Connector on First End : Bare Wire
Connector on Second End : Bare Wire
Core/Cladding Diameter : 22/12
Device Supported : Burglar Alarm, Intercom, Phone, Speaker
Jacket Type : FT6, Plenum
Material : Polyvinyl Chloride (PVC) - Jacket
Number of Conductors : 12
Number of Pairs : 6
Shielding : No
Solid or Stranded : Stranded

Lock

Cable Length (mm) : 152400

Physical Characteristics

Cable Length : 500'
Color : Natural
Package Type : Reel

Miscellaneous

Environmental Certification : RoHS
Features : Stranded, Unshielded
