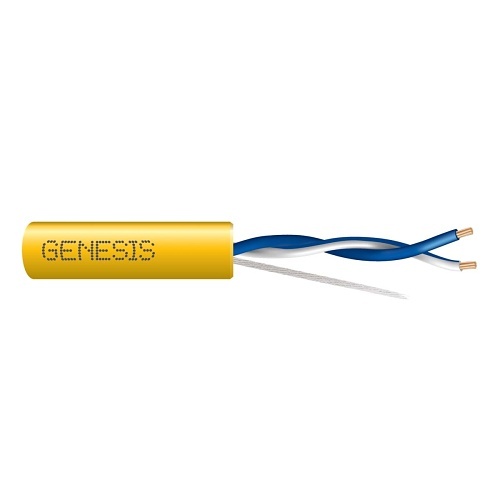

Genesis 32521102 22/1-Pair Stranded Unshielded LonWorks Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Yellow
32521102|WG-32521102
Genesis 32521102 22/1-Pair Stranded Unshielded LonWorks Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Yellow
32521102|WG-32521102
Key Features
- Bare Copper conductors for excellent signal transmission and low voltage drop
- FEP insulation
- Plenum PVC jacket
Key Features
- Bare Copper conductors for excellent signal transmission and low voltage drop
- FEP insulation
- Plenum PVC jacket
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Bare Copper conductors for excellent signal transmission and low voltage drop
- FEP insulation
- Plenum PVC jacket
Genesis
Genesis 32521102 22/1-Pair Stranded Unshielded LonWorks Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Yellow
32521102 | WG-32521102
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Genesis Building Automation Cables deliver reliable high-speed data transmission and optimized performance for today's smart building networks. Designed for the Level IV LonWorks protocol.
Main Features
- Bare Copper conductors for excellent signal transmission and low voltage drop
- FEP insulation
- Plenum PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 °C to 75 °C
- REACH/RoHS Compliant
General Information
Name: Genesis 32521102 22/1-Pair Stranded Unshielded LonWorks Cable, Plenum, CMP, FT6, 1000' (304.8 m) Pull Box, Yellow
Category: Genesis, Wire & Cable, Security & Access Control Cables, Plenum Unshielded Cables
UPC Code: 619172073943
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number WG-32521102 Brand Name Genesis Manufacturer Genesis Cable Manufacturer Part Number 32521102 Packaged Quantity 1 Product Model 32521102 Product Name 22 AWG 1P STR Plenum, Yellow, 1000 ft. Pull Box Product Type Access & Security Cable Weight 10.70 lb
-
American Wire Gauge 22AWG Cable Rating Plenum Cable Type Multi-conductor, Multi-pair Conductor Count 1 Conductor Material Bare Copper Connector on First End Bare Wire Connector on Second End Bare Wire Device Supported Data Transmission for LonWorks Cable Impedance 100 ohms Jacket Material LS PVC Jacket Type Riser Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
-
TAA Compliant Yes
-
Cable Length 1000' Color Yellow Insulation Material FEP Material Bare Copper Package Type Pull Box
-
Limited Warranty 3-Year
-
Country of Origin US Environmental Certification RoHS Features Stranded Indoor/Outdoor Indoor
