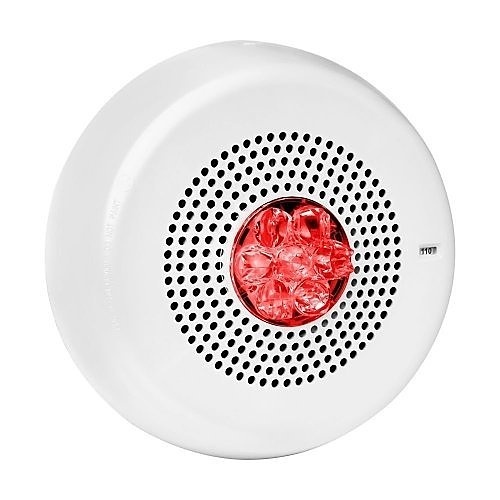

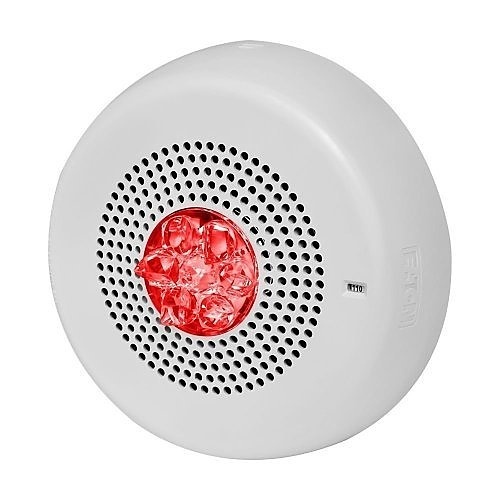

Eaton ELMTSWC-NR Wheelock Eluxa Indoor Multitone Horn Strobe, Ceiling Mount, 24V, Red

ELMTSWC-NR|WH-ELMTSWCNR
Shop all Eaton

Eaton ELMTSWC-NR Wheelock Eluxa Indoor Multitone Horn Strobe, Ceiling Mount, 24V, Red

ELMTSWC-NR|WH-ELMTSWCNR
Key Features
What's Included
  • High efficiency, LED technology
  • Low profile design and rich feature set
  • Approvals and synchronization
Key Features
What's Included
  • High efficiency, LED technology
  • Low profile design and rich feature set
  • Approvals and synchronization

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • High efficiency, LED technology
  • Low profile design and rich feature set
  • Approvals and synchronization
Eaton

Eaton ELMTSWC-NR Wheelock Eluxa Indoor Multitone Horn Strobe, Ceiling Mount, 24V, Red

ELMTSWC-NR | WH-ELMTSWCNR

Please sign in to view pricing and availability and to add to cart.

Accessories

Overview
Specifications
Documents

Product Overview

Providing eight (8) alerting sounds in a single device, the Wheelock Eluxa colored lens multitone horn strobes will meet most of your signaling needs. The nationally and internationally recognized alerting sounds include Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren or Hi/Lo Tone. The Code-3 horn and tone patterns are engineered to comply with NFPA/ANSI Temporal Pattern specifications without requiring additional equipment. The multitone horn strobe models include an advanced power saving LED technology with a full range of candela settings for indoor wall and ceiling-mount applications. The Eluxa multitone horn strobes are available with amber, blue, red, or green lens.High efficiency, LED technology Eaton's high energy efficient technology leads the industry in lowest current draw across the full candela range, which reduces overall power consumption and costs in fire alarm systems. As the first notification appliances in the industry to utilize LED as the light source, this breakthrough design, resulting in best-in-class efficiency, enables material and system cost savings, allowing for a greater number of appliances on the notification appliance circuit and fewer power supplies.Wall models: Amber lens strobe models feature six candela settings: 15, 30, 75, 110, 135, 185 cd. Blue and red lens strobes feature 5, 10, 20, 30, 40, 50 cd settings. Ceiling models: Amber lens strobe models feature 15, 30, 75, 110, 150, 177 cd. Blue lens strobes feature 5, 12, 30, 40, 50, 65 cd settings. Red and green lens strobes feature 4, 8, 18, 25, 35, 45 cd settings. See seperate data sheet for clear lens specifications.Low profile design and rich feature set Eluxa is feature rich with 6 candela settings in 1 device, two sound output levels: Standard dBA and High dBA, and pre-wire/pre-test via mounting plate with hinged feature for ease-of-installation. These products are suitable for indoor wall and ceiling mount applications. ELMTS is for 24V operation. All models may be used with filtered or unfiltered (full-wave-rectified) input voltages. Separate input terminals and shunt wires are provided to enable both audible and strobe to operate simultaneously from a single input or from two inputs using 4 wires.Approvals and synchronization The Eluxa notification appliances are listed under UL Standards 1638 and 464 and under CAN/ULC-S525 and CAN/ULC-S526. The appliances are Restriction of Hazardous Substances (RoHS) compliant and contain no mercury or other hazardous substances. In addition, the Eluxa product line has been UL/ULC listed as compatible with all Fire Alarm Control Panels (FACP) and accessories that have been determined to be compatible with Exceder LED3 and Wheelock RSS strobe-based products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH and Z Series. The listing also includes the ability to install the Eluxa strobes in the same notification zone and field of view with any Wheelock RSS strobe models making them backward compatible with our installed base of existing notification devices.

Main Features

  • High efficiency, LED technology
  • Low profile design and rich feature set
  • Approvals and synchronization

General Information

Name: Eaton ELMTSWC-NR Wheelock Eluxa Indoor Multitone Horn Strobe, Ceiling Mount, 24V, Red
Category: Eaton, Fire, Fire Notification Appliances, Horn Strobes
UPC Code: 786697720376
Country of Origin: Romania. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
