Overview
Specifications
Documents
Product Overview

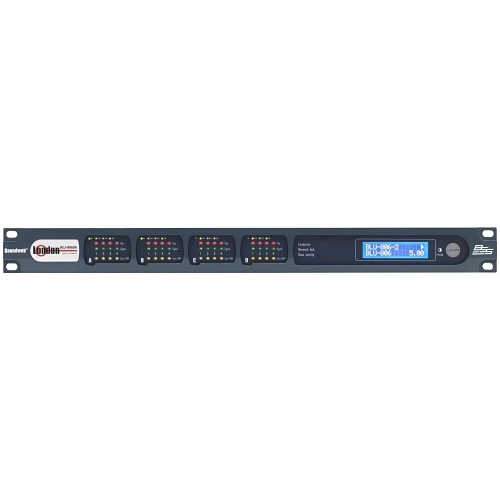

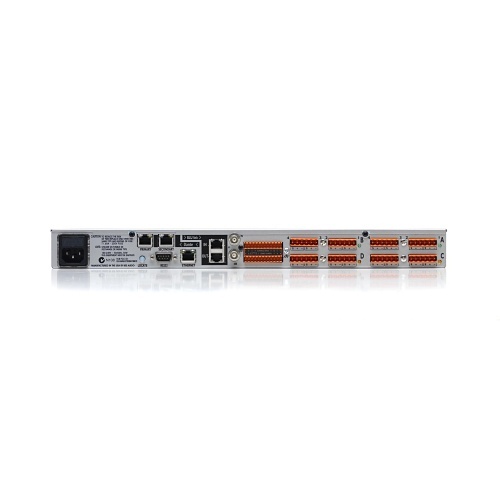

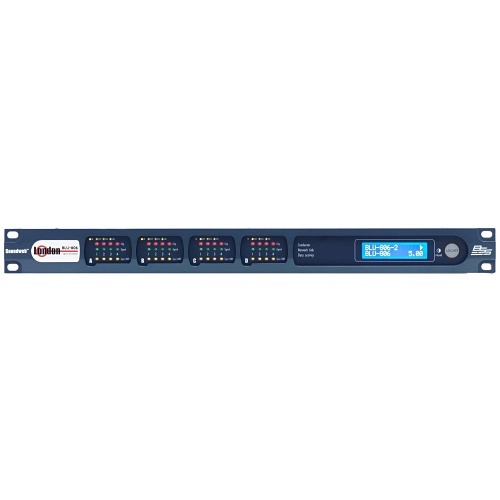

The Soundweb London BLU-806DA offers configurable I/O, configurable signal processing, Dante / AES67 audio and a high bandwidth, fault tolerant digital audio bus. The BLU-806DA has open architecture which is fully configurable through HiQnet Audio Architect. A rich palette of processing and logic objects and a "drag and drop" method of configuration provide a simple and familiar design environment. This processor features Dante / AES67 audio with primary and secondary ports for fault tolerance, with control through a separate Ethernet port. As well, the processor includes support for Dante 4.0 firmware for integration with Dante Domain Manager. The BLU-806DA also features a low latency, fault tolerant digital audio bus of 256 channels which uses standard CAT5e cabling giving a distance of 100m between compatible devices. Fiber optic media converters can be used to increase the distance between devices to over 40km. Four card slots facilitate many different device I/O configurations. Each slot can accommodate any of six available I/O cards, including the Analog Input Card, Analog Output Card, Digital Input Card, Digital Output Card, AEC Input Card and Telephone Hybrid Card. Each card supports four channels. Analog Input Cards provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Digital Input Cards and Digital Output Cards process AES/EBU and/or S/PDIF audio and offer a variety of clocking and syncing options. AEC Input Cards and Telephone Hybrid Cards facilitate specialized processing and interfacing primarily for teleconferencing applications. (Further information about the I/O cards can be found on dedicated datasheets) Phantom Power, Sync, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. Device-specific information such as Device Name, Device Type, Firmware Version Number, Time, IP Address and Subnet Mask is available from the front panel display. A bi-directional locate function allows devices to be identified both from and within HiQnet Audio Architect. 12 Control Inputs and 6 Logic Outputs allow the BLU-806DA to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet Audio Architect. The BLU-806DA and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
Main Features
- Four Input / Output Card Slots
- Configurable Inputs / Outputs
- Analog Inputs (with Phantom Power per Channel)
- Analog Outputs
- Digital Inputs (AES/EBU and S/PDIF)
- Digital Outputs (AES/EBU and S/PDIF)
- AEC Inputs (with Phantom Power per Channel)
- Telephone Hybrid Card
- Configurable Signal Processing
- Rich Palette of Processing and Logic Objects
General Information
Name: BSS BLU-806 Signal Processor, (4) Input / Output Card Slots
Category: BSS by Harman, Pro AV, Commercial Audio, Pro Audio Processors
UPC Code: 691991042805
Country of Origin: Malaysia. Country of origin is subject to change.
Specifications
-
ADI Part Number XQ-BLU806 Brand Name BSS by Harman Manufacturer Part Number BLU-806
