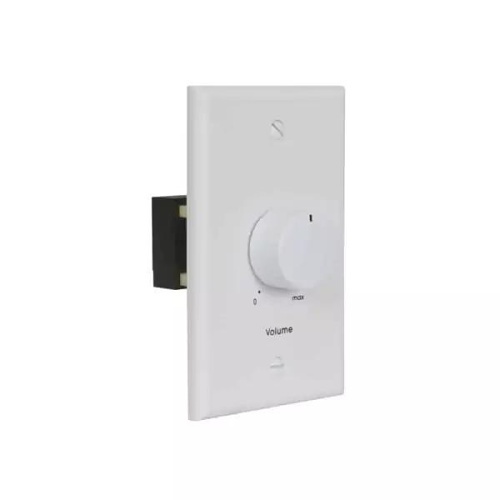

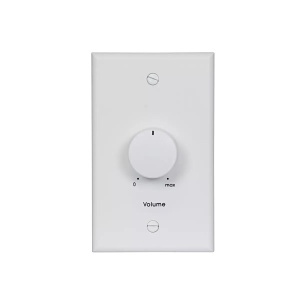

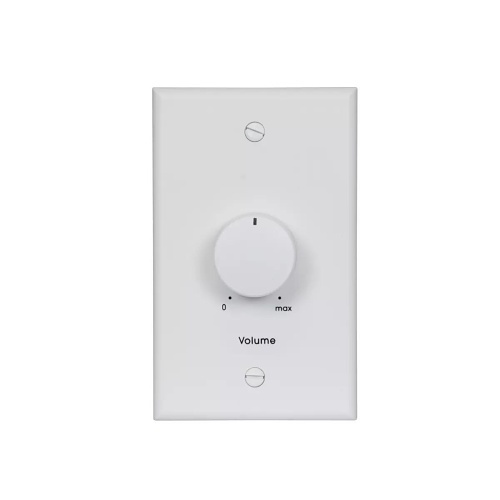

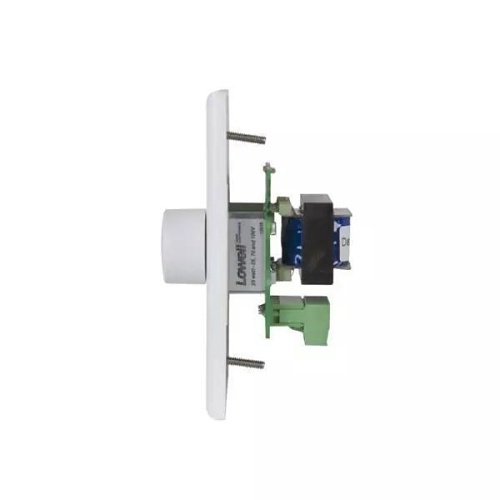

Lowell 25LVC-SW 25W Mono Volume Control with 1-Gang Standard Wall Plate, White

25LVC-SW|YL-LOW25LVCS
Shop all Lowell Manufacturing

Lowell 25LVC-SW 25W Mono Volume Control with 1-Gang Standard Wall Plate, White

25LVC-SW|YL-LOW25LVCS
Key Features
  • Mono autoformer attenuator for use with 25V/70V speaker line
  • 3dB per step (33dB total with two steps of 6dB each before off)

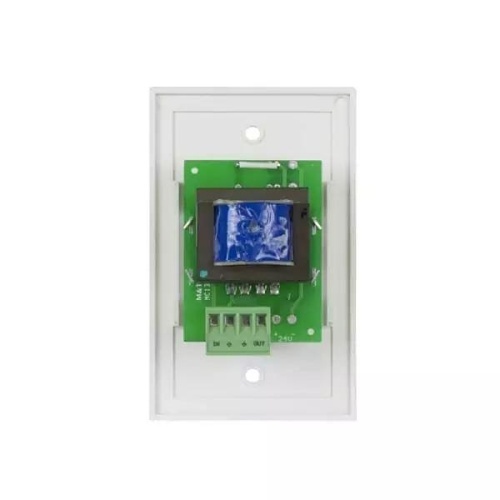

  • Phoenix style plug-in screw termination strips for pre-wire convenience
Key Features
  • Mono autoformer attenuator for use with 25V/70V speaker line
  • 3dB per step (33dB total with two steps of 6dB each before off)
  • Phoenix style plug-in screw termination strips for pre-wire convenience

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Mono autoformer attenuator for use with 25V/70V speaker line
  • 3dB per step (33dB total with two steps of 6dB each before off)
  • Phoenix style plug-in screw termination strips for pre-wire convenience
Lowell Manufacturing

Lowell 25LVC-SW 25W Mono Volume Control with 1-Gang Standard Wall Plate, White

25LVC-SW | YL-LOW25LVCS

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Mono autoformer attenuator volume control with rotary dial for use with 25V/70V/100V speaker line features 25W power rating, 3dB per step attenuation (two steps of 6dB each before off) and Phoenix style plug-in screw termination strips. Includes standard one-gang white wall plate.

Main Features

  • Mono autoformer attenuator for use with 25V/70V speaker line
  • 3dB per step (33dB total with two steps of 6dB each before off)
  • Phoenix style plug-in screw termination strips for pre-wire convenience
  • Non-continuous rotation, 0-max (10)
  • One-gang standard wall plate,white. 2.75". x 4.5''
  • Designed to fit a one-gang E.O. box with minimum inside dimensions of 1.875"W x 2.688"H x 2.125"D (not included)

General Information

Name: Lowell 25LVC-SW 25W Mono Volume Control with 1-Gang Standard Wall Plate, White
Category: Lowell Manufacturing, Pro AV, Commercial Audio, Pro Volume Controllers
UPC Code: 811859030410
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
