Lowell LTCR-3320S LTCR Series Dual Bay Wall Rack with Controlled Release, Surface Mount, 3U+3U
LTCR-3320S
|YL-LTCR3320S
Shop All Lowell Manufacturing
Lowell LTCR-3320S LTCR Series Dual Bay Wall Rack with Controlled Release, Surface Mount, 3U+3U
LTCR-3320S | YL-LTCR3320S
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

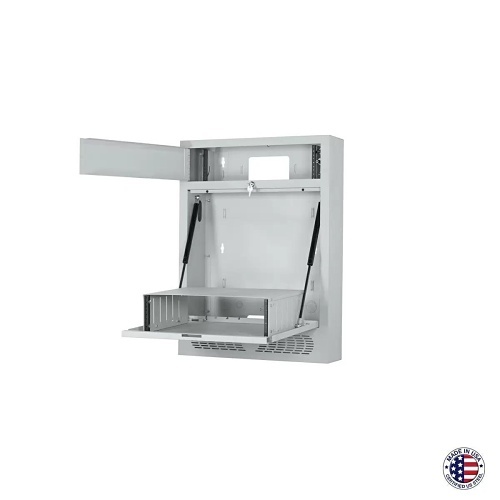

The LTCR wall rack features dampers that control the opening of the main compartment, ensuring a slow lowering of the vertically-mounted equipment. The top compartment (upper bay) is designed to mount a horizontal control panel and is hinged for swing-out access. This surface-mount model has a Neutral Network Grey powder epoxy finish. Includes electrical box in base.
Main Features
- 3U top compartment (horizontal hold) is ideal for a 19" panel. Hinge on door allows swing-open access. Fixed rails pivot down for easier access to cables
- 3U main compartment (vertical hold) for equipment up to 5.25" x 15.3" x 19" Opens with dampers to control rate of descent. Includes fixed rails and a removable shelf

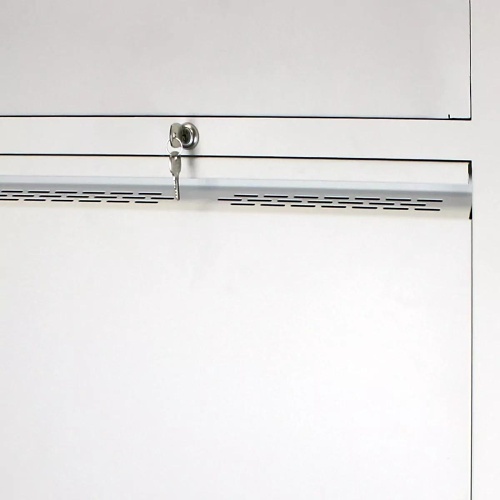

- Both compartments secure with a single lock
- Backbox with keyholes on 16" centers
- Knockouts in top, bottom, rear
- Vents at bottom and along integral formed handle
- 1" cable raceway on each side

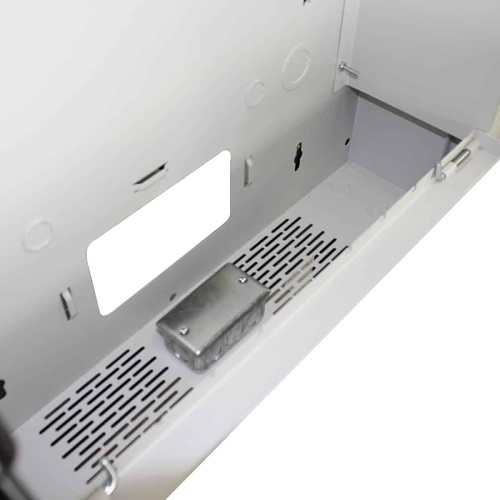

- E.O. box in base
- Load capacity 50lb
- Network Grey finish
General Information
Name: Lowell LTCR-3320S LTCR Series Dual Bay Wall Rack with Controlled Release, Surface Mount, 3U+3U
Category: Lowell Manufacturing, Pro AV, Commercial Furniture & Racks, Rack Accessories
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number YL-LTCR3320S Brand Name Lowell Manufacturing Manufacturer Part Number LTCR-3320S Product Series LTCR
TAA Compliant Yes
Depth 6.015" Height 34.06" Width 25"
Country of Origin US Environmental Certification EIA/TIA Compliant
