Product Overview
Sound masking generator produces an analog pink noise signal that is fed to sound masking amplifiers (ordered separately) in order to produce random low-level background noise to increase ambient noise and aid conversational privacy. The PRE-EQ OUTPUT has a flat spectrum that can be used as an input to equalizers that feed power amplifiers for masking systems that require precise equalization. The POST-EQ OUTPUT is adjusted by bass, mid and treble controls, and can be used for less demanding applications that utilize basic spectrum shaping.
Main Features
- Outputs- Pre-EQ hi-Z line level (500mV) with pink noise for equal energy per octave
- Post-EQ hi-Z line level (500mV)
- Adjustable post-EQ
- Connections- RCA phono jacks
- Controls- Bass, mid, treble, and volume allow for basic noise spectrum shaping without an external equalizer

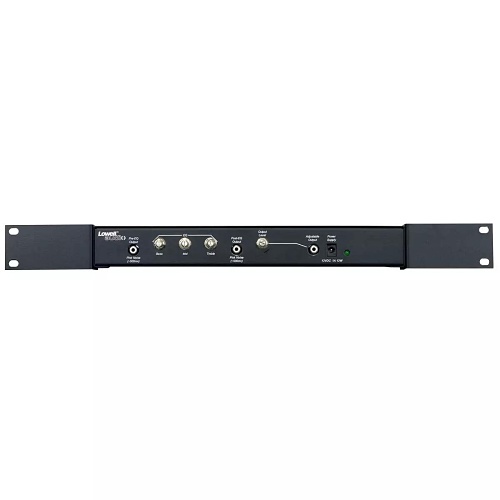

- Chassis- 12.2" x 1.5" x 6" steel chassis with black powder epoxy finish (19" 1.75" x 6" with brackets set for rackmount use)
- Power Supply- UL Listed power supply (UL60950). 100-240V AC input, 12V DC at 1A output
- Mounting Aids- Universal mounting brackets for rack, shelf, wall or under counter use
General Information

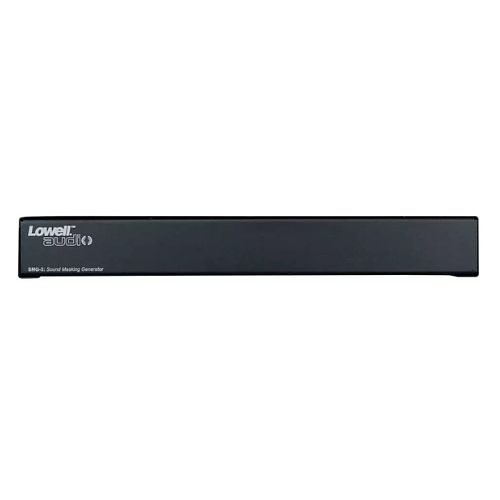

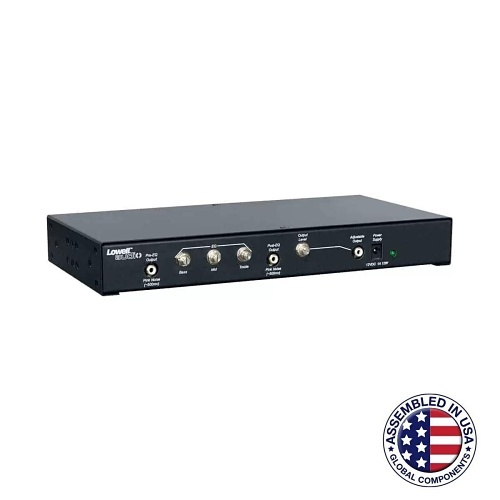

Name: Lowell SMG2 Sound Masking Generator
Category: Lowell Manufacturing, Pro AV, Commercial Audio, Pro Sound Masking Generators
UPC Code: 811405037702
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number YL-SMG2 Brand Name Lowell Manufacturing Manufacturer Part Number SMG2
Color Black
Input Voltage 100-240V AC
Country of Origin US
